Kryo Morph
Beam. Spot. Wash. Repeat

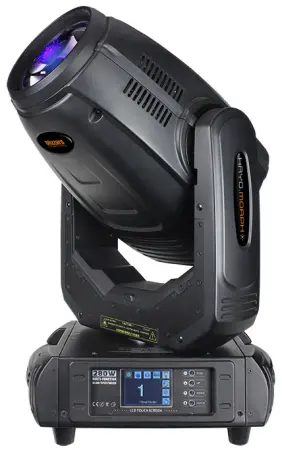

Introducing the Kryo Morph, our super-bright and feature packed beam/wash/spot moving head light that is built to impress with its incredible shape-shifting beam effects that can cut through the air with ease!
Power
Operating Voltage: 100-240VAC, 50-60 Hertz (autoranging)
Power consumption: 365W, 3.12A, PF: .98, VA 396
Fuse: T 5A/250V
Lamp
Model: HRI 280W
Lamp life: 2000 hrs
Optical System
High luminous-efficiency glass reflector
Beam range: 5°-20° (spot application), 2.5°-10° (beam application)
Luminous Intensity
Beam Mode, Narrow: 132,811 Lux @ 5M
Beam Mode, Wide: 46,094 Lux @ 5M
Spot Mode, Narrow: 76955 Lux @ 5M
Spot Mode, Wide: 6,588 Lux @ 5M
Wash Mode, Narrow: 12,420 Lux @ 5M
Wash Mode, Wide: 3,707 Lux @ 5M
Color Wheel
13 dichroic filters + white
Static Gobo Wheel
10 metal gobos & 4 beam reducers
Rotating Gobo Wheel
9 glass gobos can be indexed and rotated in both directions at different speeds
Continuous gobo wheel rotation
Slot-n-lock system for easy gobo replacement
Gobo Size: OD 14.75mm / Image: 13.00mm
Prisms
Rotating 6-facet linear prism with continuous bidirectional rotation
Rotating 8-facet circular prism with continuous bidirectional rotation
Zoom
Linear motorized zoom
Strobe
Strobe effect with variable speed (max.15 flashes/sec.)
Control
Protocol: USITT DMX-512
DMX Channels: 16/24-Channels
LCD touch screen menu
3 user editable programs, each up to 100 steps
Operating modes: standalone, master/slave, auto, sound active
Warranty
2-year limited warranty
It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane. With a narrow 5°-20° (spot application), or 2.5°-10° (beam application), the output is crystal clear and brilliant. Add in either rotating 6-way linear or 8-way circular prisms to create wide reaching effects across any stage.
Use the frost filter and any of its 13 rich colors to create a very smooth even wash. The Kryo.Morph™ has an output far greater in quality and power than seems possible from fixture of this size, due to its highly efficient short arc 280W discharge light source and precise optical configuration.
Features include 540/270° pan & tilt movement, 9 rotating gobos, 14 static gobos + open, 13 colors + white, 6/8-facet rotating prism, motorized zoom and focus, frost filter, 4-button + touch screen LCD control panel, PowerCON® compatible power input, and dual ¼ turn omega mounting brackets.
This fixture also travels quite nicely in its own dual fixture road case (sold separately).
For the ultimate beam/spot/wash effect combo fixture... Kryo.Morph™ has you covered!
Main Features
• Beam/Wash/Spot 3-in-1 Moving Head
• HRI 280W Lamp, 2000 hrs (Standard mode), 3000 hrs (Eco mode)
• Smooth dimmer from 0 - 100 %
• Control channels: 16/24-channel
• Color wheel: 13 dichroic filters + white
• Rotating Gobo wheel: 9 rotating, indexable and replaceable slot-n-lock glass gobos + open
• Static Gobo wheel: 10 metal gobos & 4 beam reducers
• Prism 1: 8-facet circular prism rotating in both directions at different speeds
• Prism 2: 6-facet linear prism rotating in both directions at different speeds
• Frost effect: Separate, variable
• Strobe effect with variable speed (max.15 flashes/sec.)
• Dimmer/Shutter: Full range dimming and variable strobe effect
• 3 user editable programs, each up to 100 steps
• Motorized zoom and focus
• LCD touch screen control menu
• Pan: 540°/Tilt: 270°
