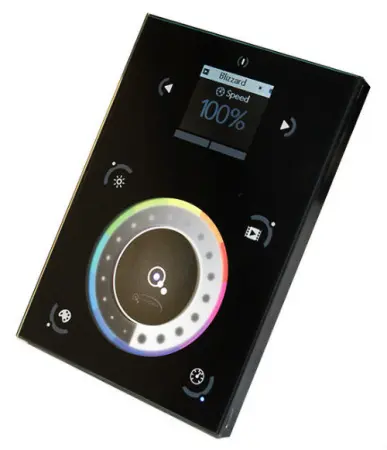

Blizzard Lighting LumiDesk LD Touch Ulti

Blizzard Lighting LumiDesk LD Touch Ulti (Blizzard Lumi Desk LD Touch Ulti)

Touch-Sensitive Glass, Wall Mounted DMX Controller Interface

Blizzard Lighting is proud to be the exclusive US distributors of the ever-popular LDTouch Ultimate™ stand-alone, wall mounted DMX controller by LumiDesk™. The LDTouch Ultimate™ is designed to work with our new Lucid™ DMX lighting control software.

The LDTouch Ultimate™ is LumiDesk’s most popular and powerful wall mounted DMX control interface to date.  It features 2 DMX universes (1024 channels), multi-zone memory, a sleek full-color LCD screen, and Ethernet connectivity to allow remote control functionality.

Users have independent control of up to 5 areas with the LDTouch Ultimate’s easy to use, touch sensitive buttons and graphic color display. Trigger sequences with RS232, dry contact ports, and date/time scheduling are all included. You can even gain full control using your iOS, or Android Smartphone or Tablet, via one of the 3 compatible free apps.

The unit is delivered with a USB to mini-USB cable and phoenix connector. Optional accessories that are available through Blizzard Lighting dealers include a 5VDC power adaptor and a break-out PCB for extending DMX and power lines remotely over standard CAT5 cable.

The LDTouch Ultimate™ wall mount measures 4.2 x 5.75 inches (106x146mm), and Lucid™ DMX Lighting Control Software is fully compatible with Windows XP, VISTA, and Windows 7 (32/64-bit.)

Features:

•   Stand alone wall mounted DMX controller
  •   Glass design with touch-sensitive buttons
  •   Color/dimmer/speed palette and graphic color display
  •   2 DMX OUT universes (1024 channels)
  •   USB+ETHERNET connection
  •   Multi-zone memory
  •   Trigger from RS232, PORTS, infra red, clock/calendar
  •   Software is compatible with Windows XP/VISTA/SEVEN 32/64-bit.

Specifications:


•   Package: Interface, sdcard, datasheet, cdrom, usb cable
  •   Software: Lucid DMX on PC/Windows
  •   Mobile Apps: DMX Lightpad 3 + ARCOLIS on iPhone/iPad/Android
  •   Available colors: Black
  •   Standards: EC, EMC, ROHS, ETL, UL (some are in process)
  •   Temperature: -10ºC to 45ºC
  •   Dimensions: 4.2 x 5.75 x.433 inches (106 x 146 x 11 mm)
  •   Weight: 8.71 oz

Blizzard LDTouchULTI (Blizzard Lighting LD Touch ULTI)
