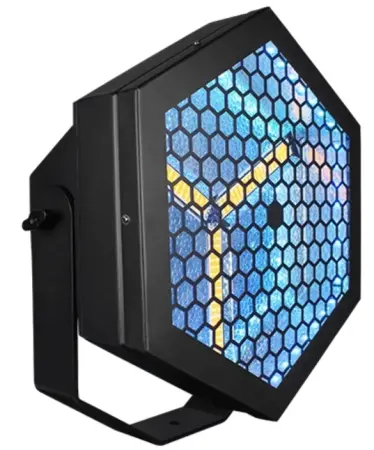

Lux Capacitor
Warm White Retro Blinder + Background Color Effects

Retro Blinder + RGB Effects
Lux Capacitor™ is a unique blinder effect that can emit very warm, vintage 2200k color temperature light output from its 3* 60W LEDs, as well as RGB colored effects via an additional 48* 0.5W LEDs located around the perimeter of its highly reflective aluminum inner housing.

Professional Features
Each of its warm white LEDs can be independently controlled, and it offers R/G/B color mixing + an ultra-smooth overall master dimmer. Features also include auto and sound active modes, 32-bit dimming, an LCD control panel, and 3/5-pin DMX + powerCON® compatible power input/output.

MAIN FEATURES
• 3x 60W warm white LEDs (2200K)
• 48x 0.5W RGB LEDs (background effects)
• Individual control of warm white LEDs
• 30 speed controllable built-in programs
• Sound active mode available via standalone or DMX
• User-selectable 32-bit dimming curves
• Variable electronic dimming
• 1-25Hz strobe effects
• Flicker-free LEDs
• 3/5-pin DMX input/output connections
• PowerCON® compatible power input/output connections

Overview

Warm White Blinder + RGB Background Effects

Flicker-free LEDs

436 Lux @ @ 2.5m, 121 Lux @ 5m


Optical

3x 60W warm white LEDs (2200K)

48* 0.5W RGB LEDs (background)


Weight & Dimensions

12.6” x 6.5” x 16” (320 x 164 x 405 mm)

11.7 lbs (5.3 kg)


Control

Protocol: USITT DMX-512

DMX channels: 6/8/12-channel modes

Easy-to-use 4-button control panel with LCD display

Operating modes: DMX512, master/slave, auto, sound active


Power & Current
110-240VAC, 47-63 Hz
Power Consumption: 274W, 2.49A, PF: .99
PowerCON compatible AC power In/Out connectors


Warranty
2-year limited warranty

Blizzard Pro Lux Capacitor (Blizzard Lighting Flux Capacitor)
