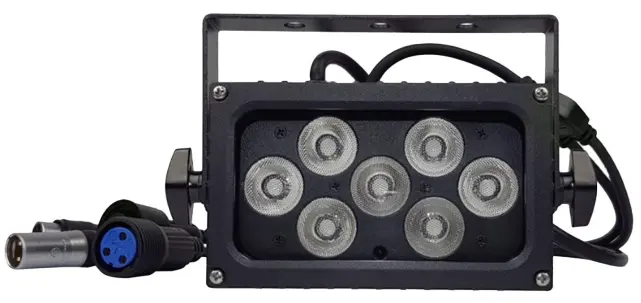

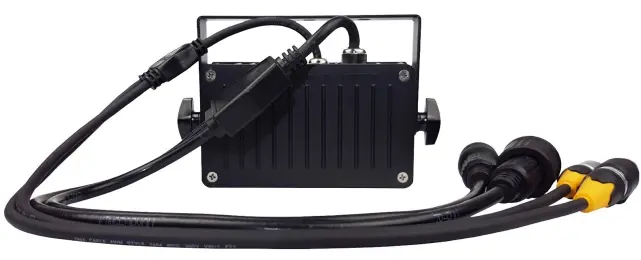

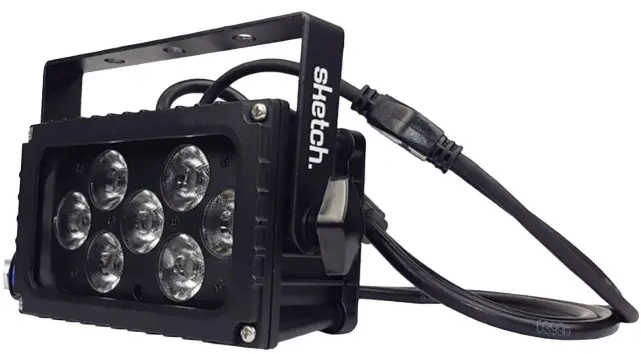

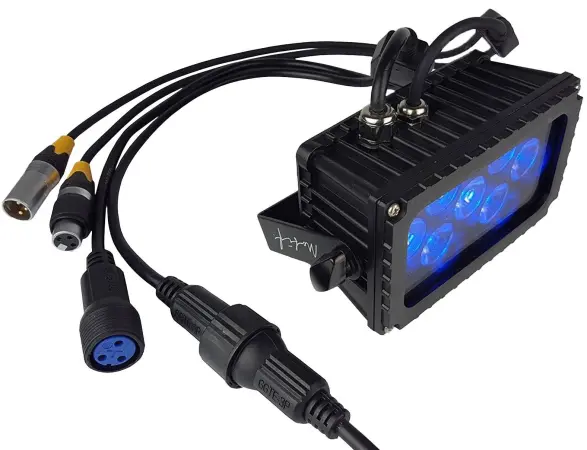

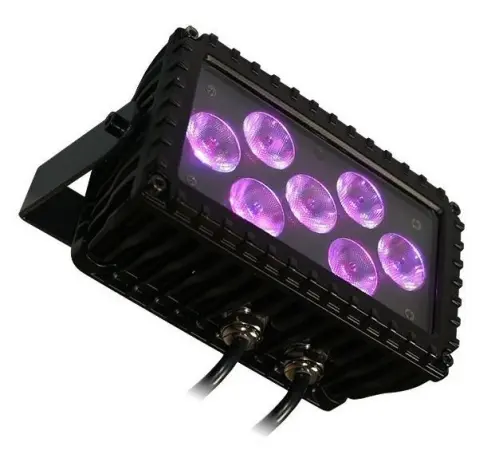

Blizzard Lighting Motif Sketch (Blizzard Sketch)

Meet sketch

Sketch grew up always knowing he was somehow just a little different from all the rest of the lights.

While everyone else was hanging out with those loud, brash musicians, Sketch found himself more of a wallflower. He’s a little fella sure, but he’s got plenty where it counts.

For starters, he’s got a thick skin - IP65 to be exact. And he’s always in control thanks to his infrared remote (included). And even though he’s small in stature, he makes up for it by being an extra bright little guy, mainly thanks to his seven three-watt tri-color LEDs with custom-designed lenses.

In short, our little sketch has been a bit of an inspiration to us all.

We’d love to see sketch light up your life the way he has ours, whether that’s in or on your home, office, shop, or... wherever. Sketch is our first fixture designed specifically to beautify the many spaces of our lives off the stage. Make him feel welcome!

• Exceptional RGB color mixing from 7x 3-watt TRI-color LEDs
• Fully controllable via IR remote control (included)
• Advanced heat sink design for zero fan noise
• Secure mounting bracket
• Multiple built-in color presets and auto programs
• User adjustable program speed & fade times
• 0-100% variable electronic dimmer
• Variable electronic strobe
• Durable cast aluminum housing
• Tempered glass lens and watertight internal gaskets

Power
• Operating Voltage: 100-260VAC, 50-60 Hertz
• Fuse: 2A 250V
• Power Consumption: 23W

Light Source
• LED 7x 3-watt TRI-color LEDs, 100,000 hours.

Optical
• Beam Angle: 25 degrees

Thermal
• Max. Operating Temp.:104 degrees F (40 degrees C) ambient

Control
• Protocol: USITT DMX-512
• DMX Channels: 3-channel
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female

Operating Modes:
• Standalone or Master/Slave

Weight & Dimensions
• Length: 6.29 inches (16 cm)
• Width: 2.78 inches (7.5 cm)
• Height: 3.54 inches (9 cm)
• Weight: 2.87 lbs (1.3 kg)

Warranty:
• 2-year limited warranty, does not cover malfunction caused by damage to LED’s.
