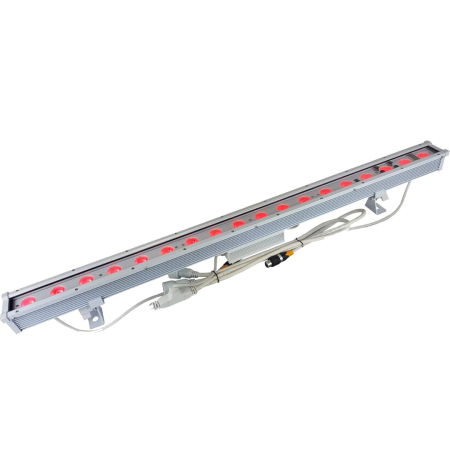

With the Motif Vignette™ from Blizzard, you'll get an IP65 rated outdoor lighting fixture capable of making a statement, while able to provide brilliant, richly mixed colors, and lighten the mood with a soft, gentile touch. This superb luminaire features 18x 10-watt high output Quad-Color RGBW LEDs with 25 degree beam angle, all housed in an attractive, 1-meter linear package.
Offering everything the smaller Motif Sketch™, and Motif Fresco™ lights do, plus a whole lot more, it's among the latest and greatest in the Motif™ series of IR remote-controllable outdoor fixtures. It can be controlled by its own unique IR remote control (sold separately) that's simple to use and provides the exact same functionality of its onboard LED control panel, but with the addition of quick access shortcut buttons to its auto mode and custom programs.
The Motif Vignette can also be controlled via 10/7/5/4 or even only 3 DMX channels, or directly with the easy-to-use, easily accessible LED control panel found right on the face of the unit, right under its water-tight tempered glass lens. The 4x electronic touch sensitive menu buttons really make programming (and button pushing) a breeze.
Blizzard Motif Vignette Includes:
1 x Motif Vignette™ LED Fixture
1 x IP Rated AC Power Cord with Cable Cap
1 x Set of IP Rated DMX In/Out cables
1 x User Manual
Blizzard Motif Vignette Features:
Exceptional color mixing from 18x 10-watt Quad-Color LEDs
Advanced heat sink design for zero fan noise
Multiple onboard color presets and auto programs
User adjustable program speed & fade times
0-100% variable electronic dimmer
Variable electronic strobe
Durable cast aluminum housing and mounting brackets
Tempered glass lens and watertight internal gaskets
Easy-to-use 4-button LED control panel menu
Built like a rock (It hits the gym regularly)
USITT DMX-512 (3/4/5/7 and 10-channels)
Easy to use IR remote control (sold separately)
Blizzard Motif Vignette Specifications:
Operating voltage: 100-264VAC, 50-60 Hertz
Power Consumption: 83W, .98A, PF: .68
Light Source: 18x 10-watt LEDs, 100,000 hours
Thermal: 104° F (40° C) ambient
DMX channels: 3/4/5/7 and 10-channels
Input: 3-pin XLR Male
Output: 3-pin XLR Female
Operating Modes: DMX512, Master/Slave, Auto, Standalone
Dimensions (WxDxH): 39.8" x 2.7" x 4"
Weight: 9 lbs.
Warranty: 2-year limited; does not cover malfunction caused by damage to LEDs
