Buildable Design
Dream it up and build it out. Nexys WW is 1 of 3 modular LED fixtures capable of interlocking with one another in any direction– horizontal, vertical or diagonal – thanks to its unique hexagonal shape.

Loaded with Features
This WW LED effects light features a RGB diffused outer ring & backlight. It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner, and 6 outer pixel ring groups.

Modular Innovation
Nexys™ WW is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect in any orientation: horizontally, vertically, or diagonally to form captivating visual arrays. This specific model boasts a 80W LED with a 10° Fresnel lens for a sharp warm white beam. Additionally, it features an outer 6-pixel RGB diffused ring and an inner 6-pixel RGB backlight for enhanced visual effects.

Loaded With Features
It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner, and 6 outer pixel ring groups. Then for ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCON-TRUE1 compatible in/out connections.

FEATURES:

80W Warm White LED (3200K) w/Fresnel lens
36x SMD 5050 RGB 50mW LEDs (outer ring)
18x SMD 5050 RGB 50mW (backlight)

SPECIFICATIONS:

Optical
80W flicker-free WW LED (3200K)

36x and 18x SMD 5050 RGB 50mW LEDs (outer and backlight)

10° beam angle

6,107 Lux @ 2.5M

1,354 Lux @ 5M

Control
Protocol: USITT DMX-512

5-pin DMX in/out

6/11/42-channel DMX

4-button menu with LCD display

DMX512, M/S, auto mode

Power & Current
100-250VAC, 50-60 Hz

Consumption: 90W, 1.21A, PF: .64

PowerCON® TRUE1-compatible in/out

Dimensions
17.9" x 4.9" x 6.8"

5.3lbs

In the Box
Nexys™ WW fixture, dual mounting brackets, an Omega bracket with quick-lock quarter turn fasteners (clamp not included)

Warranty
2 Year - Extendable

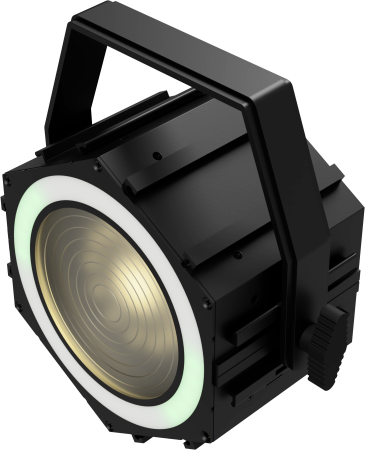

Blizzard Nexys-WW (Blizzard Lighting Nexys™ WW)
