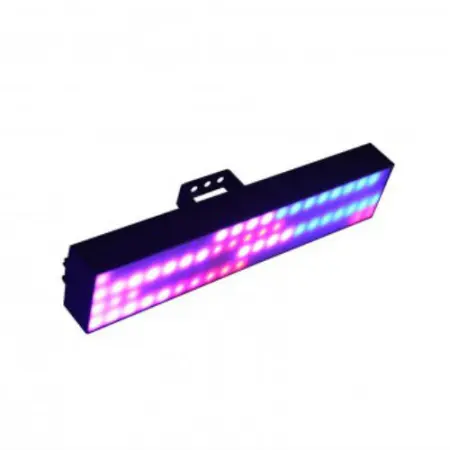

Meet Pixellicious™ Mini, the 1/2 meter 4*20 RGB LED version of our popular Pixellicious™ pixel mapping LED bar. Each Pixellicious™ Mini houses 80 tri-color SMD 5050 RGB LEDs with 25mm pixel pitch and has a 120-degree viewing angle.

Pixel mapping displays are achieved in minutes using multiple control options: DMX-512, industry standard Art-Net, Arkaos Kling-net, or simply be controlled via its easy-to-use 4-button LCD control panel. It also works great with ArKaos LED Master for easy plug-n-play.

Depending on the look you want to achieve, you can mount them individually using its clamp mounting bracket with tilt and locking knobs, fasten multiple fixtures together end-to-end with their end connection brackets, and even connect up to 3 fixtures together to be vertically mounted from just one rigging point.

It also comes with a frosted and a clear replaceable lens filter, and is equipped with RJ45 Ethernet data connections, PowerCON™ compatible AC in/out, and DMX in/out jacks.

And of course, its backed by Blizzard’s 2-year warranty!



Main Features

• Easy-to-use pixel mapping and video 1/2 meter bar
• 80* (tri-color) SMD 5050 LEDs, 50,000 hours
• Control each using Art-Net™ (3.0 compliant) or ArKaos Kling-Net
• Works great with ArKaos LED Master for easy plug-n-play
• Create vertical effects with hardware linking system
• Wide viewing angle and excellent color rendering
• 29 built-in programs, auto (mix) mode + sound active
• Link up to four in-lines with network cables or create vertical effects with hardware linking system
• Easily manage configuration and software updates with the network-based remote web server
• High-performance fanless convection cooling
• Mounting bracket with dual locking knobs for positioning flexibility
• RJ45 ethernet data connections
• 3-pin male input and 3-pin female output
• PowerCon™ compatible AC power In/Out connectors

Specifications:

Power
Operating Voltage: 90-240VAC, 50-60Hz
Power Consumption: 51W, .36A

Light Source
80 LEDs (tri-color) SMD 5050, 50,000 hours life expectancy

Optical
120 degree beam angle

Luminance
Clear Filter: 2586 NITS, Frosted Filter: 2160 NITS
Pixels: 20 x 4
Pixel Pitch: 25mm

Thermal
Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control
Protocol: Art-Net™, Kling-Net, USITT DMX-512
DMX Channels: 8/20/240-Channels
Artnet Channels: 240-Channels
Input/Output: 3-pin XLR Male/Female
Operating Modes: Standalone, Master/Slave, Auto, Sound Active

Weight & Dimensions
Width: 19.7 inches (500mm)
Depth: 4.2 inches (107 mm)
Height: 5 inches (127.3 mm)
Weight: 4.6 lbs. (2.2 kg)

Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.

Blizzard Pixellious Mini (Blizzard Lighting Pixelious mini)
