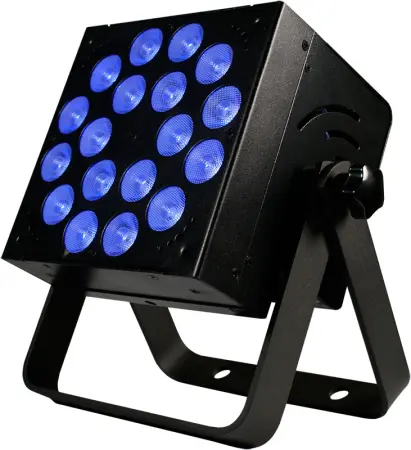

Blizzard Lighting RokBox 5 RGBAW (Blizzard Rock Box 5 RGBAW)

The box... one of the most useful, time tested, and attractive 3-dimensional shapes ever created is once again new and improved!

With the addition of 18x 15-watt RGBAW 5-in-1 LEDs, advanced electronics, and dual hanging brackets with secure grip locking knobs, the RokBox™ 5 RGBAW is sure to be a great addition to your lighting rig!

It features 4/5/9 or 10 DMX channel modes, which means it works great with any type of controller, including popular 4-channel controllers. You’ll have full control of all that RokBox™ 5 has to offer such as RGBAW color mixing, 31 built-in programs, ultra smooth flicker-free 32-bit dimming (5 user-selectable dimming curves), and even easy HSV color mixing ability in 4-channel mode.

The super-easy to use built-in 4-button LED control panel also allows total control over the fixture including master/slave settings, sound active mode, built-in programs, auto mode, custom RGBAW color mixing, and user adjustable fade/strobe effects for a totally rocking light show!

It also comes equipped with industry standard powerCON® compatible power input/output connections & 3-pin DMX connections which are all strategically placed on the back of the unit in a way that allows you to use the RokBox™ 5 RGBAW in ANY position, including flat on the floor. This makes the RokBox™ 5 RGBAW a perfect solution for any of your uplighting and/or truss warming needs!




Features:

•   RGBWA color mixing via 18x 15W Red/Green/Blue/Amber/White 5-in-1 LEDs
  •   5 user-selectable 32-bit dimming curves
  •   Variable electronic dimming & strobe
  •   Built-in color & chase macros via DMX
  •   Built-in automated programs via master/slave
  •   Built-in sound active programs
  •   RGBAW color mixing ability in standalone mode
  •   Rugged and well-built (It hits the gym regularly)
  •   Super-quiet variable-speed internal fan cooling
  •   Dual mounting brackets for positioning flexibility
  •   Flicker-free constant-current 400hz LED driver
  •   3-pin male input and 3-pin female output
  •   PowerCon™ compatible AC power In/Out connectors

Specifications:

Power
  •   Operating Voltage: 90-230VAC, 50-60 Hertz
  •   Fuse: 3A 250V
  •   Power Consumption: 154W

Light Source
  •   LED: 18x 15W 5-in-1 LEDs 100,000 hours.

Optical
  •   Beam Angle: 25 degree optics standard, 26 degree beam, 30 degree field

Thermal
  •   Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control
  •   Protocol: USITT DMX-512
  •   DMX Channels: 4/5/9/10
  •   Input: 3-pin XLR Male
  •   Output: 3-pin XLR Female
  •   HSV (4-Ch), RGBAW (5-Ch), Extended (9-Ch), and Extended plus 32-bit Dimming (10-Ch) DMX Profiles
  •   Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Weight & Dimensions
  •   Length: 9.22 inches (234 mm)
  •   Width: 6.5 inches (165 mm)
  •   Height: 8.98 inches (228 mm)
  •   Weight: 7.28 lbs (3.3 kg)

Warranty
  •   2-year limited warranty, does not cover malfunction caused by damage to LED’s.
