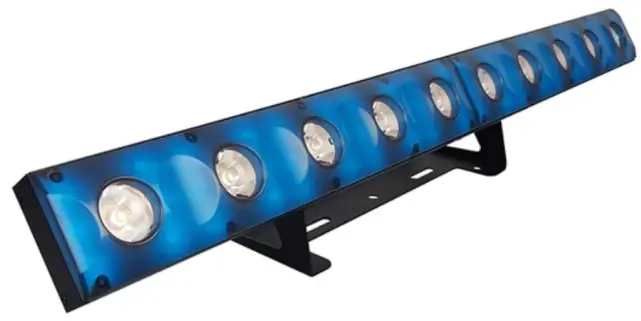

SpektACL
2-in-1 Pixel Mapping Matrix LED Bar

Not Just A Show, The Show
SpektACL™ creates stunning aerial impact with 10x 4° super bright 3W CREE® warm white LEDs @ 2600K. Plus, 60x 5050SMD RGB “background” LEDs create massive foreground appeal. ALL of SpektACL™’s LEDs are individually pixel mappable, and it’s RGB pixel matrix effortlessly belts out full-bar color fades, changes and show-stopping chase effects.

Loaded with Features
SpektACL™ offers easy-to-use built-in auto programs, sound active mode, and is easily controlled using DMX-512, Art-Net, Arkaos® Kling-Net® or directly using it’s easy-to-use 4-button LCD control panel. SpektACL™ is well connected, too, thanks to onboard RJ45 Ethernet data connections, powerCON®-compatible AC in/out and 3/5-pin DMX in/out jacks.

MAIN FEATURES
• 10X 3W CREE® WW LEDs, + 60x 5050SMD RGB LEDs
• Individual pixel control of beams + RGB background pixels
• Super-sharp 4° warm white beams
• Incredible built-in programs for intense light shows
• Excellent RGB color consistency while dimming to 0%
• Completely silent, natural convection cooling system
• Backlit alphanumeric 2x16 character LCD display
• RJ45 In/out jacks
• 3/5-pin DMX input/output
• Art-Net, Kling-Net, and RDM ready
• PowerCON® compatible AC power input/output
• Standalone, master/slave, auto, sound active modes
• Multifunctional bracket for floor or truss mounting

Optical

10* 3W CREE® LEDs (2600K WW)

60* 5050SMD RGB LEDs

4° beam angle (x10)


Weight & Dimensions

Width: 30.7” (780 mm)

Depth: 4.1” (103 mm)

Height: 2.9” (73 mm)

Weight: 8 lbs. (3.6 kg)


Control

USITT DMX-512, Art-Net, Kling-Net, RDM

10/21/42/190-channel DMX modes

DMX512, M/S, Standalone, Auto, Sound Active

3/5-pin XLR In/Out

4-button LCD control panel


Power & Current
100-240VAC, 50-60 Hz
Power Consumption: 68W, 0.94A, PF: .94
Fuse: 1.5A, 250V


Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs

Blizzard Pro Spectacle (Blizzard Lighting Spekt ACL)
