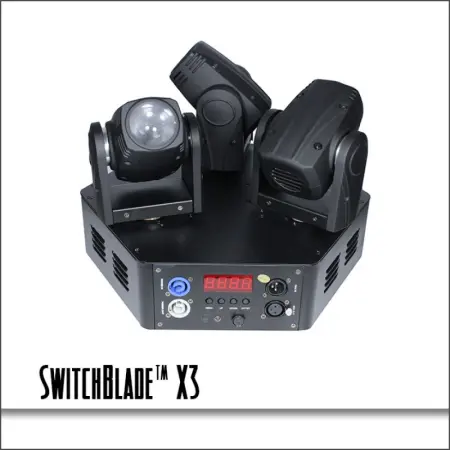

Blizzard Lighting SwitchBlade X3 (Blizzard Switch Blade x 3)



High Power, White LED Beam Triple Threat!

With an amazingly bright white 10-watt LED on each of its three moving heads, the SwitchBlade™ X3 triple mini moving head LED fixture will cut through the air with surgical precision with each of its moving head’s razor-sharp 2-degree beams! Built to impress, it’s a unique centrepiece unlike anything you have ever seen before!

With lightning fast 16-bit 540°/270° pan and tilt on each head, the SwitchBlade™ X3 will pump up the crowd with an incredible white 3-beam display. Add more SwitchBlade™ X3 fixtures to the show via DMX for an even greater level of intensity. Depending on your setup and your own personal preferences, you can set each SwitchBlade™ X3 to invert the pan, tilt, or both for some totally cool synchronized motion effects!

You can take control of all the possible features of the SwitchBlade™ X3 directly by using its large LED 4-button control panel or via 21 or 9-channels of DMX with master/slave capability. Each of the three moving heads are individually and fully controllable (each with separate effects) in 21ch DMX mode, and pan, tilt, speed, dimmer, strobe, random strobe, and auto run mode are all easily accessible directly through the LED control panel or via DMX!

Industry standard powerCON® compatible power In/Out connections, DMX In/Out jacks, and dual quarter-turn “Omega” quick connect type clamp brackets all come equipped with this intensively engineered, incredible triple mini moving head spot fixture!

It’s an affordable, one of a kind, instant hit for your lighting rig... get yours today!




Features:

•   3x 10w high power white LEDs, 100,000 hrs.
  •   Outstanding 3x white beam effects
  •   Independent control of each head in 21cm DMX mode
  •   High efficiency LED shutter
  •   Built-in sound active programs
  •   9 and 21 DMX Channels
  •   Invert pan, tilt, or both
  •   Linear dimmer
  •   Pan/Tilt Resolution: 16-bit
  •   PAN = 540° TILT = 270°
  •   3-pin XLR input and output
  •   ¼-turn “omega” style clamp brackets
  •   POWERCON-compatible power in/out
  •   Easy to use 4-button LED-based menu system

Specifications:

Light Source
  •   3x 10w high power white LEDs, 100,000 hrs.

Control
  •   Protocol: USITT DMX-512
  •   DMX Channels: 9/21 channels
  •   Operating Modes: Standalone, Master/Slave, Auto, Sound Active
  •   Input: 3-pin XLR Male
  •   Output: 3-pin XLR Female
  •   LED 4-button control panel

Optical
  •   Beam Angle: 2 degree
  •   53,500 @ 1m | 14,700 @ 2m | 2,600 @ 5m

Movement Range
  •   Pan: 540 degree
  •   Tilt: 270 degree

Power
  •   Operating Voltage 100-250VAC, 50-60Hz
  •   Power Consumption 60w

Operating Temperature
  •   Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Dimensions
  •   Length 14 inches (355 mm)
  •   Width 12.3 inches (312 mm)
  •   Height 10.7 inches (270 mm)
  •   Weight 16.5 lbs (7.5 kg)

Warranty
  •   2-year limited warranty, does not cover malfunction caused by damage to LED’s.
