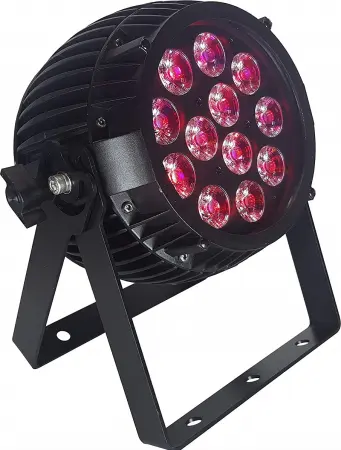

TOURnado IP W-DMX
12x 15W 6-in-1 LEDs + Wireless W-DMX

IP65 + Wireless W-DMX
The Tournado™ IP W-DMX is a tough IP65 rated fixture featuring super bright RGBAW+UV color mixing thanks to its installed 12x 15W 6-in-1 LEDs with advanced 25° optics. It has all the same advantages as the TOURnado™ IP EXA, but with the addition of a built-in W-DMX™ receiver to provide ultra-stable wireless communication.

Loaded with Features
It sports a convection cooled cast aluminum housing with a tempered glass lens, watertight internal gaskets, and weatherproof power and data cable in/out connections. Users can run any of its built-in programs individually or all together in auto run mode with speed control, fade, flash, or perform full RGBAW+UV color mixing with or without DMX control.

MAIN FEATURES
• RGBAW+UV color mixing via 12x 15W 6-in-1 LEDs
• 2.4Ghz built-in wireless W-DMX™ receiver
• LED control panel with 4 touch sensitive buttons
• Super-sharp 25° beam angle
• Variable electronic dimming & strobe
• Built-in color & chase macros via DMX
• Virtual color wheel effect
• Built-in automated programs via master/slave
• User selectable 4/5/6/7/9/12-channel DMX modes
• Convection cooled cast aluminum housing
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current LED driver
• IP rated locking power and 3-pin DMX connections

Optical

Light Source: 12* high output 15-watt RGBAW+UV LEDs

Beam Angle: 25°

Flicker-free LEDs

Luminous Intensity: 13,700 Lux @ 1m | 3,900 Lux @ 2m


Wireless Receiver

Transmission band: 2.4Ghz ISM (2.4-2.525Ghz)

Channels: 512

Receiver sensitivity: -94dBm


Weight & Dimensions

10.7 x 5.7 x 12.1 in. (27 x 14.4 x 40.7 cm)

Weight: 11.5 lbs (5.2 kg)


Control

Protocol: USITT DMX-512

4/5/6/7/9/12-channel DMX modes

Standalone, master/slave, DMX, auto modes

IP65 Seetronic 3-pin DMX input/output

4-button LED control menu display


Power & Current

100-264VAC, 47-63 Hz

Power Consumption:
100W, 1.35A, PF: .6


Warranty

2-year limited warranty, does not cover malfunction caused by damage to LEDs

Blizzard Pro TourNado IP WDMX (Blizzard Lighting Tornado W-DMX IP)
