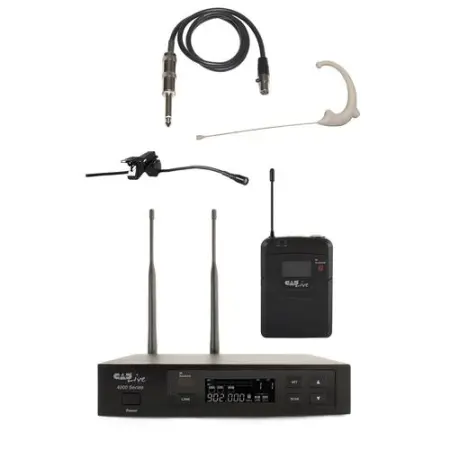

DIGITAL WIRELESS BODY PACK MICROPHONE SYSTEM (INCLUDES E19 EARWORN, E29 LAVALIER, AND WXGTR)

The CADLIve 4000 series Digital Wireless feature True Diversity operation to minimize multipath interference. Frequency agile design partnered with ScanLink™ technology will precisely scan, select and link to the optimum channel allowing for easy flexible frequency planning.

CADLive wireless features 10, 30, 50mW transmitter power adjustment and dynamic range up to 115dB. Receivers and transmitters are equipped with a high definition LCD display and full RF, AF, Battery Life, Mic Sensitivity and RF power metering.

Body pack systems include Equitek E19 earworn and E29 lavalier mics.

The body pack transmitters also include SoftTouch™ multi-function On-Off/Mute switches. CADLive bodypack transmitters are equipped with CADTone™ circuitry ensuring accurate reproduction of Hi-Z guitar and Lo-Z mic inputs.

Features:

True Diversity to minimize multipath interference
Frequency agile operation for maximum frequency plan flexibility
ScanLink™ technology for instantaneous and automatic channel configuration
CADTone™ Body Pack input – Optimized Impedance Interface - Hi-Z for Guitar and Lo-Z for mic
Metal construction Handheld Transmitter equipped with CADLive D90 capsule
High Contrast LCD displays on TX and RX
Transmitters feature 10, 30, 50mW power adjustment to aide in multiple system applications
902-928MHz operation free from FCC TV spectrum legislation
Simultaneous usage of up to 17 systems
Dynamic Range > 115dB
AA Batteries with up to 15 Hrs of battery life
Systems ship with rack ears single/dual BNC relation kit and durable carry case
BodyPack systems include miniature E19 Earworn, E29 Lav, WXGTR guitar cable
XLR and ¼” outputs on receiver

Specifications:

Frequency Range Band
T: 902 to 928 MHz

Frequency Response
40 Hz to 15 kHz

Dynamic Range >115 dB

Transmitter Power
Switchable 10, 30, 50 mW

Battery Life
Up to 15 hours

CAD Audio WX4010 (CAD wireless mic system)
