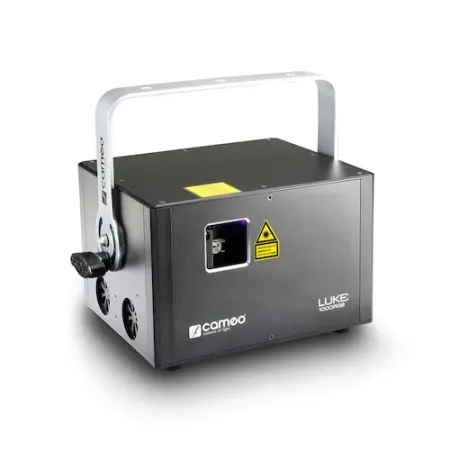

Cameo Lighting Luke 1000 RGB enlarge

Cameo Lighting Luke 1000 RGB DISCONTINUED

This product has been discontinued by the manufacturer. Please contact us to find a replacement.



or $111/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

Cameo Luke 1000RGB  (Cameo Lighting CL-LLUKE1000RGB)

Professional 1000mW RGB Show Laser
**Variance required

Sporting diode and DPSS lasers with 3 mm beam diameters and a maximum divergence of 1.5 mrad only the LLUKE 1000RGB delivers an output 1,000 mW and red, green and blue color mixes.The red 638 nm diode achieves a significantly better visibility than a conventional 650 nm diode and makes the LUKE 1000 RGB the ideal choice for highly professional laser shows.

The Luke Series professional show lasers utilize an ingenious dual layer design to separate the optical components from the power supply and fan to vastly improve performance. They feature high speed 30 Kpps galvo scanners @ 8 degrees ILDA, a 60° scan angle and 128 pattern presets for exciting graphics projections with high visibility and pinpoint beams. The Luke laser lights include an ILDA interface on 25-pin D-sub connectors for computer control, 3-pin inputs and outputs for DMX control in 4-channel and 11-channel modes and a built-in microphone with adjustable sensitivity for sound control. In addition, they provide master, slave and standalone capability. The rugged high quality aluminium enclosure sports a key switch to prevent unauthorized use, a bright display with four function keys for manual operation and Neutrik powerCON mains connectors. A low noise fan keeps the compact units quiet and cool, and for audience safety the Luke Series laser lights are equipped with a “Scan Fail Safety” system.

Note: Sharing identical presets, the Luke lasers are compatible with the Ioda series for master and slave operation. With switchable inversion, the master and slave combo is capable of producing the most interesting and impressive laser show effects.

Features:

Professional laser show light
Dual layer construction for maximum optical performance
High speed 30 Kpps galvo scanners @ 8° ILDA
128 pattern presets
Precision beams with minimum divergence for razor-sharp projections
ILDA, DMX and sound control plus auto function
Master, slave and standalone modes
Display with 4 function keys for easy manual operation
Scan Fail Safety system
Neutrik powerCON mains inputs and outputs
Rugged aluminium enclosure with low noise fan and key switch

Specifications:

Product number: CLLLUKE1000RGB
Product type: Laser
Total power: 1000mW
Colour spectrum: RGB
Wavelength: 447nm, 638nm, 532nm
Beam Data: approx. 3 mm / 1.5 mrad divergence
Laser sources: DPSS, Laser diode
Laser Class: 4
Scanner: High performance galvoscanner, 30 kpps @ 8 degrees ILDA
Max. scan angle: 60°
Operating modes: auto programs, DMX 512 protocol, ILDA, sound control
DMX input: XLR 3-pin male
DMX output: XLR 3-pin female
ILDA input: 25-pin Sub-D male
ILDA output: 25-pin Sub-D female
DMX mode: 4-channel, 11-channel
Controls: mode, Value Up, Enter, Value Down
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 100W
Power connector: Neutrik PowerCon
Housing material: aluminium
Cabinet colour: Black
Width: 215mm
Height: 157mm
Depth: 225mm
Weight: 5.5kg
show full description
