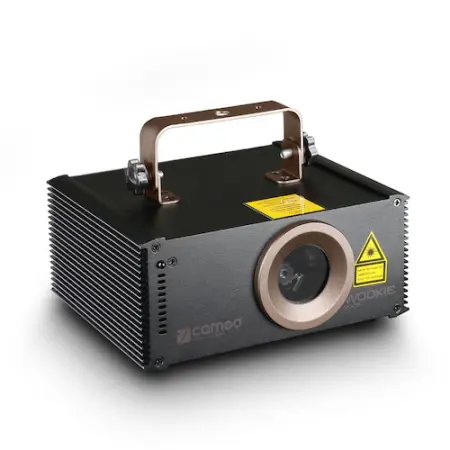

WOOKIE 200 R
Animation Laser 200mW red
The 200 mW output power WOOKIE 200 R features a red diode laser with 3 mm beam diameter and only 1 mrad divergence.
***Variance required


The Wookie Series animation laser lights provide vibrant, highly visible animations with precision beams, 32 lively pattern presets and high speed 5 Kpps stepper motors with a 60° scan angle. They are controllable via DMX in 3-channel and 9-channel modes, the integrated microphone with adjustable sensitivity and capable of master, slave and standalone operation. Each Wookie laser light sports a compact, high quality aluminium enclosure with 3-pin DMX connectors, IEC mains inlet and adjustable mounting bracket. A key switch prevents unauthorized use, and the bright display with four function keys allows easy manual operation. The Wookie Series laser lights come with a convenient infrared remote control.

Features:

Animation laser with high speed 5 Kpps stepper motor
60° scan angle
Precision beams with minimum divergence
32 pattern presets
DMX, sound and infrared control plus auto function
Master, slave and standalone modes
Display with 4 function keys for easy manual operation
Rugged aluminium enclosure with key switch
Includes handheld infrared remote

Specifications:

Product number: CLLWOOKIE200R
Product type: Laser
Total power: 200mW
Colour spectrum: red
Wavelength: 650nm
Beam Data: approx. 3 mm / 1 mrad divergence
Laser sources: Laser diode
Laser Class: 3B
Scanner: High speed stepper motors, 5 kpps
Max. scan angle: 60°
Operating modes: sound control, DMX 512 protocol, auto programs
DMX input: XLR 3-pin male
DMX output: XLR 3-pin female
DMX mode: 3-channel, 9-channel
Controls: Value Up, Value Down, mode, Enter
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 50W
Power connector: IEC power connector male
Housing material: metal
Cabinet colour: Black
Width: 180mm
Height: 90mm
Depth: 192mm
Weight: 2kg

***Variance required

Cameo Wookie 200R laser (Cameo Lighting CL-LWOOKIE200R)
