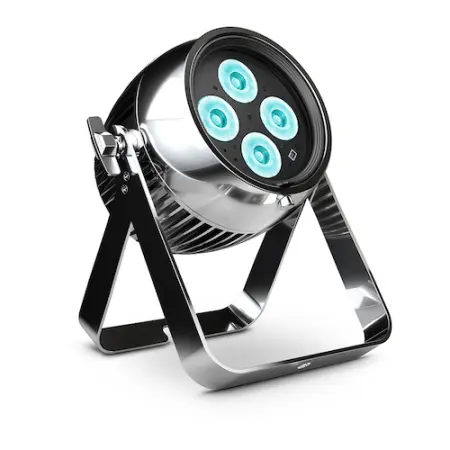

Battery-Powered W-DMX™ IP65 PAR Light chrome
With battery operation, built-in wireless DMX and IP65 rating, the Cameo ZENIT® B60 is ready for demanding indoor and outdoor lighting applications. The highly professional PAR light sports four 15 W RGBW Cree LEDs with a 50,000 hour lifetime and powerful 1,900 lm output for brilliant, uniform colours with a precise 11° beam spread. For extra versatility it comes with two specially designed light shaping diffusers offering a choice of 25° or 40° beam angles while maintaining output.

In addition to seven modes of DMX, RDM and IR remote or manual control via the fixture’s display the ZENIT® B60 incorporates a 2.4 GHz W-DMX™ receiver. Developed by Wireless Solution Sweden AB, W-DMX™ has become the unofficial standard for professional wireless lighting control. The luminaire’s super capacity lithium-ion battery is made by LG Chem providing reliable performance up to 24 hours from a single charge with adjustable runtime in one hour increments. An intelligent control automatically calculates brightness, and the PAR light’s battery management system prevents overcharging and exhaustive discharge for extended battery life.

Sporting a 3,600 Hz refresh rate for flicker-free performance and highly efficient convection cooling for noiseless operation, the ZENIT® B60 is perfect for motion picture and TV applications. It utilises 16-bit technology for smooth high-resolution colour mixing and dimming and includes individual LED colour temperature correction plus a selection of dimming curves with adjustable response. The aluminium housing features a bright OLED display with four touch buttons for easy configuration while a security lock prevents unauthorized menu access.

Features:

Professional battery operated W-DMX™ PAR Can with IP65 rating
4 x 15 W RGBW Cree LEDs with 1,900 lm total output for uniform colour mixes
Long-life super capacity LG Chem lithium-ion battery for reliable operation
Battery Management System prevents overcharging and exhaustive discharge
Built-in 2.4 GHz W-DMX™ receiver
Wireless DMX, standard DMX, RDM and IR control or via the 4-button display
Includes 2 light shaping diffusers for flexible 11°, 25° or 40° beam spread options, elliptical diffuser 60° x 10° available as accessory
16-bit technology for high-resolution colors and dimming
OLED display with 4 touch buttons for easy configuration
Security lock against unauthorized menu access
Emergency lighting functionality

Specifications:

Product number: CLZB60CLSD
Product type: LED PAR Lighting
Type: Outdoor
Colour spectrum: RGBW
Number of LEDs: 4
LED type: 15 W Cree
Refresh rate: 3600Hz
Dispersion: Without diffusor - (Beam) 11° / (Field) 18°
DMX input: 5-pin IP65
DMX output: 5-pin IP65
DMX mode: 10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel
DMX Functions: strobe, reset, Dimmer Response, Dimmer Fine, Dimmer Curve, Dimmer, CTC (Colour Temperature Correction), colour jump, RGBW Fine, colour fade, RGBW, colour macro
Standalone modes: master / slave mode, Dimmer Response, colour macro, Dimmer Curve, static colour, colour jump, strobe, colour fade, auto programs, White Balance adjustable
Controls: Value Down, Enter, mode, Value Up
Indicators: OLED Display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 100W
Power connector: IP65
Power through connector: IP65
Housing material: die-cast aluminium
Cabinet colour: chrome
Protection class IP: IP65
Battery type: LG F1L
Battery energy: 217 Wh
Battery capacity: 20.1 Ah
Battery operation time at maximum load: up to 24 hours
Charging time: 4h
Cooling: Convection
Illuminance: 40000lx @ 1m
Luminous flux: 1900lm
Efficiency: 32 lm/W
Operating Temperature: -15 - 45°C
Dimensions without mounting bracket
Width: 187mm
Height: 187mm
Length: 164mm
Weight: 4.8kg

Cameo ZENIT B60C (Cameo Lighting CLZB60CLSD)
