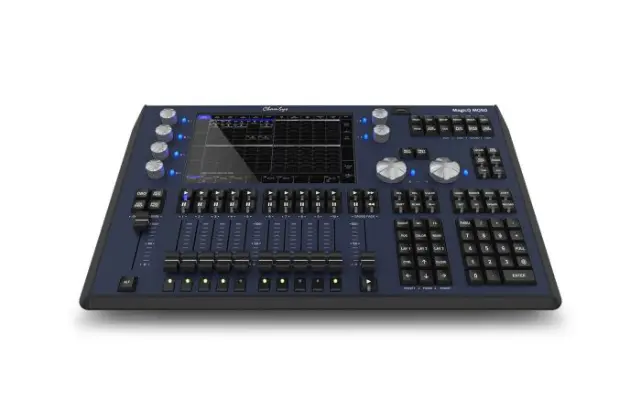

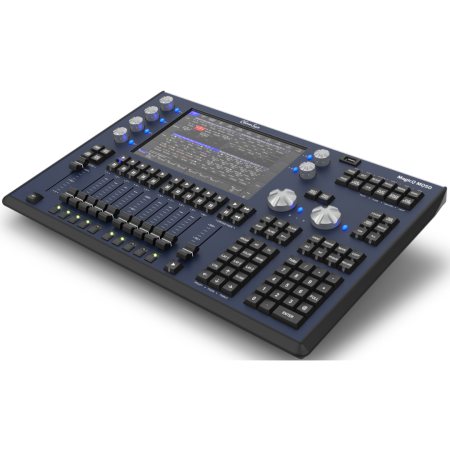

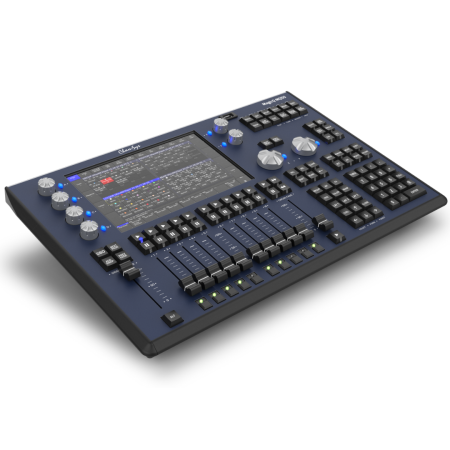

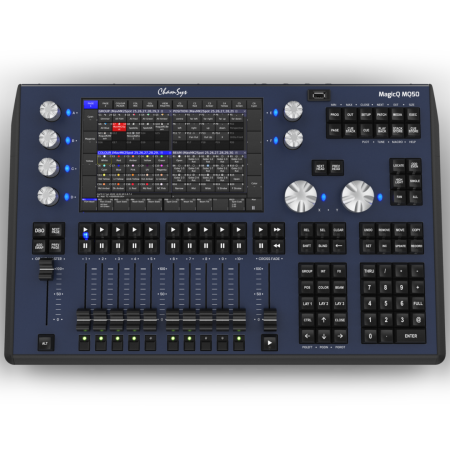

The ChamSys MagicQ MQ50 is a 6 DMX universe compact lighting console featuring a high resoultion 10.0" multi-touch display, built-in WiFi for quick and secure connection to MagicQ remote app, RDM support via direct DMX ports, and silent operation. MagicQ MQ50 is simple and easy to use for installations, clubs and schools while still featuring advanced features such as MagicVis and MagicHD connectivity. It uses the same software and show formats, enabling compatibility between all products in the MagicQ range.

ChamSys MagicQ MQ50 Features

6 Universes direct from the console
High Resolution 10.1" multi touch display
In built WiFi for quick connection to MagicQ Remote App
RDM Support via direct DMX Ports and Network
Silent Operation, ideal for theatres
ChamSys MagicQ MQ50 Specifications

Control & Programming

Universes supported: 6
Channels: 3072
Number of fixtures: Up to 3072
Cues: 5000
Groups: 5000
Control / User Interface

Display: 10.1"
Console Display: 10" Multi touch display
External Monitor: HDMI - supports touch screens
DMX 5-Pin XLR: 4
RDM Support: Yes
Faders: 12
Attribute encoders: 8

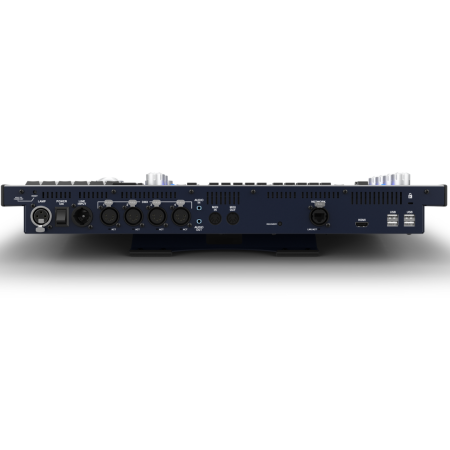

Connections

Network ports: 1
Inbuilt WIFI: Yes
USB ports: 5
Audio in: Yes
Audio out: Yes
MIDI: Notes
Wing Support: Yes
Multi console: Yes
1 Dual Colour Dimmable LED
Console Lamp
Physical

Width: 20.6"
Depth: 13.7"
Height: 2.3"
Weight: 15.4 lbs

Chamsys CHAMMQ50 (ChamSys mq50)
