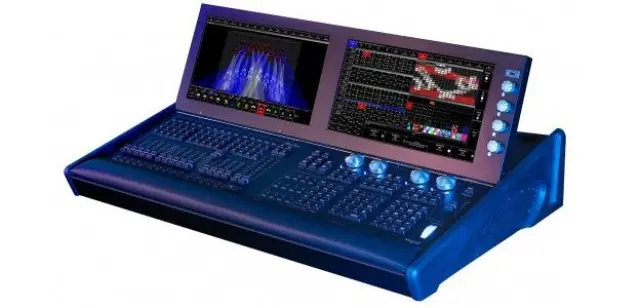

The ChamSys MQ500 Stadium is a new stadium control console designed to operate at the highest level of lighting control. The ChamSys MQ500 Stadium features dual inbuilt 15" displays, Full HD 1920x1080 resolution, and 200 universes direct from console (licensed above 64). MagicQ MQ500 Stadium enables shows to be designed from concept to reality including lighting, media, LED and scenic design. The MQ500 includes an intensity wheel and 100mm split crossfaders for theatre control, and incorporates 42 fader and executor playbacks for live busking.

ChamSys MQ500 Features:
Dual Inbuilt 15" displays
Full HD 1920x1080 resolution
Adjustable display viewing angle
Multi touch with gesture support
200 universes direct from the console (licensed above 64)
Inbuilt MagicVis Visualiser with full rendering of beams and gobos
Inbuilt MagicHD Media Player for pixel mapping onto 200 universes
Playback section with 30 Playbacks (15 full fader, 15 flash)
12 multi purpose Macro/Executes/Playbacks
RGB function indication for every Playback
Programming section with Intensity Wheel and 100mm crossfaders for Theatre
Dedicated Grand Master fader and DBO button
Dedicated Goto, Time, Head, Flip, Pair Buttons
Modular design for easier maintenance
Comfortable arm rest
Adjustable external monitor arm with VESA mount
Designed and manufactured in the UK

ChamSys MQ500 Specifications:
Universes: 200 (64 standard)
Channels: 102,400 (32,768 standard)
Number of fixtures: Up to 102,400 (32,768 standard)
Cues: 5000
Cue stacks: 2000
Palettes: 4096
Groups: 5000
Numbers of shows: Virtually unlimited
Media server support: 50 (each different content)
Encoders: 8
Faders: 18
Direct DMX ports: 4
Network ports: 4
External monitor: Up to 1920x1200
USB ports: 6 (including 1 on front panel for easy access)
Audio input (1 channel, 7 band)
MIDI Notes in/out
LTC in/out
Inbuilt UPS
Variable Speed Fan
Dual Colour Desk lamp
Illuminated soft buttons
Dust cover
Power input: 110 to 240 VAC
Width: 860mm
Depth: 585mm
Height: 90mm high at front, 175mm high at rear (screens stored)
Flightcased Dimensions:
Width: 940mm (37 inches)
Depth: 670mm (26.4 inches)
Height: 290mm (11.4 inches)

Cham Sys CHAMMQ500200WITHCASE (ChamSys Magic Q MQ-500)
