Chauvet DJ ColorStrip Mini FX
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

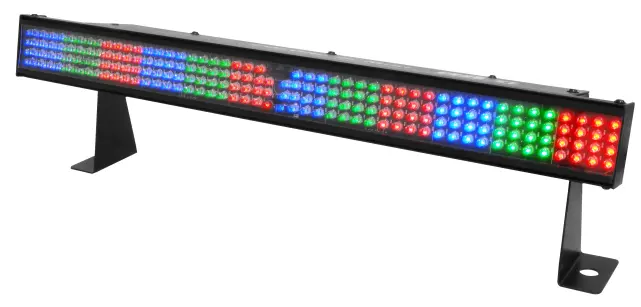

Chauvet Lighting ColorStrip Mini FX (Chauvet Color Strip Mini FX)
COLORstripâ„¢ Mini FX is a compact, linear wash light with built-in laser effects, perfect for uplighting applications or mesmerizing effects. Built-in, dynamic laser patterns are variance free and ready to use right out of the box. Combine multiple units together for unique runway effects, or pair it with other COLORstripâ„¢ fixtures for large coordinated light shows. Use the included wireless IR remote for separate color and program control. Save time by power-linking multiple units and safely transport COLORstripâ„¢ Mini FX in the optional CHS-60 VIP Gear Bag.
)
Features:
• Compact, linear wash light with built-in laser effects perfect for up-lighting applications or mesmerizing eye-candy effects
• Create large, coordinated light shows with other COLORstrip™ Mini or COLORstrip™ fixtures in Master/Slave mode
• Generate unique runway effects by connecting multiple units together
• Wireless operation allows for separate color and program control using the included IR remote
• Eye-catching, variance-free laser patterns ready to use right out of the box
• Save time running cables and extension cords by power-linking multiple units
• Fits best in the CHS-60 VIP Gear Bag
Specifications:
• DMX Channels: 4 or 7
• DMX Connectors: 3-pin XLR
• Light Source: 190 LEDs (63 red, 64 green, 63 blue) 0.25 W (20 mA), 100,000 hours life expectancy
• Light Source: 532 nm/50 mW (green) laser diode, 650 nm/100 mW (red) laser diode
• Strobe Rate: 0 to 2 Hz
• Beam Angle: 22°
• Field Angle: 38°
• Coverage Angle (laser): 100°
• Illuminance: 444 lux @ 2 m
• Power Linking: 20 units @ 120 V; 38 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 28 W, 0.4 A @ 120 V, 60 Hz
• Power and Current: 26 W, 0.2 A @ 230 V, 50 Hz
• Weight: 4.2 lb (2 kg)
• Dimensions: 19 x 2.4 x 6.6 in (482 x 60 x 169 mm)
• Included Controllers: IR
• Classified per EN/IEC 60825-1:2007
• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Approvals: CE, FDA
