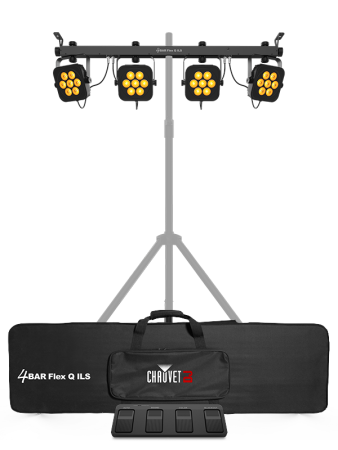

The 4Bar Flex Q ILS LED RGBA All-in-One Wash Lighting System from CHAUVET DJ combines four adjustable RGBA LED par lights into a single lighting system. The fixture features flexible mounting possibilities and wireless control options including CHAUVET DJ's Integrated Lighting System (ILS). Easily incorporated into almost any light show, the 4Bar Flex Q ILS is a powerful tool for venue owners, DJs, and other entertainers.

Versatile Configuration

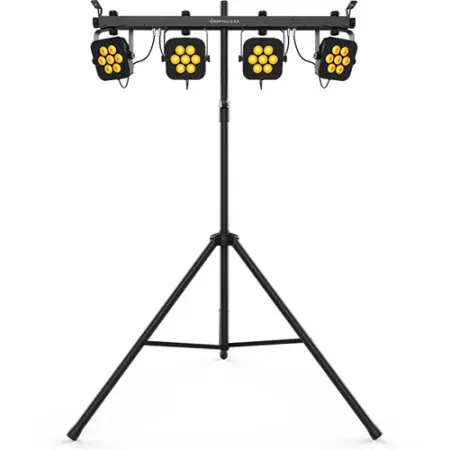

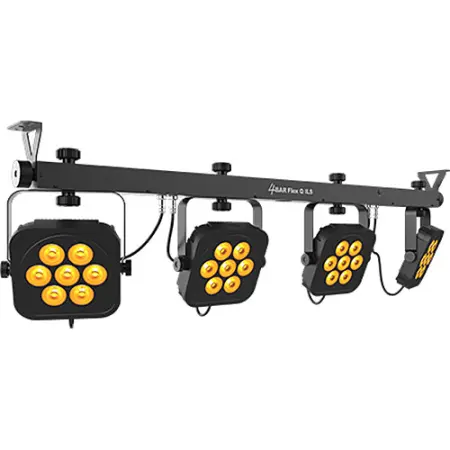

A variety of mounting options enables the 4Bar Flex Q ILS system to be easily integrated into any light show setup. The pass-through hole bypasses the need for additional rigging hardware and is compatible with most tripods and speaker stands. Setup possibilities are maximized by two integrated L-brackets. Four additional fixtures can be rigged to the top of the bar.
Wireless Control
Multiple connectivity options allow the fixture to flexibly link to the rest of your coordinated light shows. The built-in Integrated Lighting System (ILS) provides seamless interaction between other fixtures in the ILS ecosystem, while wireless master/slave or DMX control is enabled through D-Fi USB compatibility. The included IRC-6 remote and wireless footswitch allow for IR connection, and a 4-button control panel on the rear of the fixture offers direct control input.
Rich Colors and Programming
Quad-color LED technology allows for precise color rendering in any situation. The RGBA produces vibrant color mixing across a wide spectrum while also delivering accurate natural-looking color temperatures. Choose from static colors, automated programs, or sound-activated light shows.

FEATURES:

All-in-One System for Bright Color Wash
28 x 3.5W RGBA LEDs
0 to 100% Dimming
14° Beam Angle|23° Field Angle

SPECIFICATIONS:

Light
Fixture Type PAR
Number of Included Heads/Lights 4
Light Source PAR:
28 x Color LED - 3.5 W / 1.3 A
Expected Lamp Life 50,000 Hours
Colors PAR:
Amber, Blue, Green, Red
Photometrics 219 fc / 2353 Lux at 6.6' / 2 m (per Fixture)
Beam Angle 14°
Field Angle 23°
Shutter / Strobe Electronic
Performance
Operating Modes Automatic, DMX, Program, Sound-Active, Static Color
Macros / Programs 12 x Auto-Program
1 x Sound-Active
Effects Strobe (Variable Speed)
Strobe Rate 0 to 20 Hz
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 3 Mode(s):
4 / 6 / 19-Channel
Display / Controls LCD / 4-Button
Remote Control IR Remote (with Included Equipment)
Footswitch (with Included Equipment)
D-Fi USB (with Optional Equipment)
Mobile App Compatible No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Wireless IR
*Built-In
Wireless Range Footswitch:
100' / 30.5 m
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 2 x IEC
Fuse F 2.5 A
Power / Current Consumption 120 VAC, 60 Hz: 80 W / 1.2 A
230 VAC, 50 Hz: 78 W / 0.6 A
Power Linking 6 Units at 120 VAC
13 Units at 230 VAC
Physical
Mounting Mounting Bracket, Tripod Stand & Top Bar
Included Accessories 1 x Power Cable
1 x Case (Light/s)
2 x Controller
Exterior Color Black
Max Housing Temperature 104°F / 40°C
Cooling Convection
Certifications CE, RoHS, UKCA
*as per Manufacturer
Dimensions 45.7 x 12.8 x 4.7" / 116.1 x 32.5 x 11.9 cm (with Bracket)
43.3 x 11.6 x 2" / 110 x 29.5 x 5.1 cm (without Bracket)
Weight 12.2 lb / 5.5 kg (System)
Packaging Info
Package Weight 21 lb
Box Dimensions (LxWxH) 51.5 x 14.75 x 6"

Chauvet 4BARFLEXQILS (Chauvet DJ All-in-One RGBA LED Wash Lighting System)
