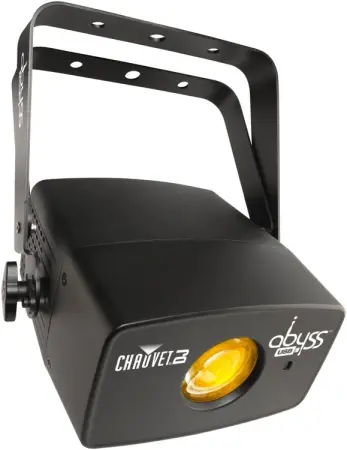

Abyss™ USB simulates a pleasing multicolored water effect that shines through any environment with or without fog using upgraded, high power LEDs. It can be controlled wirelessly via master/slave or DMX thanks to its D-Fi™ USB compatibility. A dichroic color wheel and two glass effect wheels are independently controllable to expand design options. Non-DMX control is possible in stand-alone mode from the digital display or optional IRC-6 remote control (sold separately). Save time running cables and extension cords by power linking multiple units. Fits best in the CHS-40 VIP Gear Bag.

Features:

• Eye-catching, LED effect light simulates a multicolored water effect

• D-Fi™ USB compatibility for wireless Master/Slave or DMX control

• Shines through any environment with or without fog using upgraded, high-power LEDs

• Achieve optimal projection and effects using 1 dichroic color wheel and 2 glass effect wheels

• Increase design options with independent control of effect and color wheels

• Access non-DMX control in Standalone mode from digital display and IRC-6

• Save time running cables and extension cords by power linking multiple units

Specifications:

• DMX Channels: 3
• DMX Connectors: 3-pin XLR
• Colors: 5 + white, Rainbow scroll
• Light Source: 1 LED (cool white) 30 W (7 A), 50,000 hours life expectancy
• PWM Frequency: 1,200 Hz
• Coverage Angle: 59°
• Illuminance: 715 lux @ 2 m
• Power Linking: 14 units @ 120 V; 27 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 38 W, 0.5 A @ 120 V, 60 Hz (65 VA)
• Power and Current: 37 W, 0.3 A @ 230 V, 50 Hz (67 VA)
• Breaker Size: T 1 A, 250 V
• Weight: 5.8 lb (2.7 kg)
• Size: 7.7 x 9 x 9.7 in (195 x 228 x 246 mm)
• Optional Controllers: IRC-6
• Approvals: CE

Chauvet AbyssUSB (Chauvet DJ Abyss-USB)
