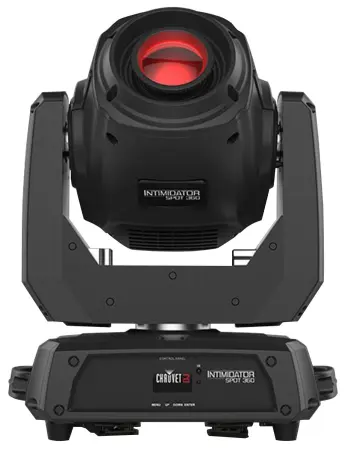

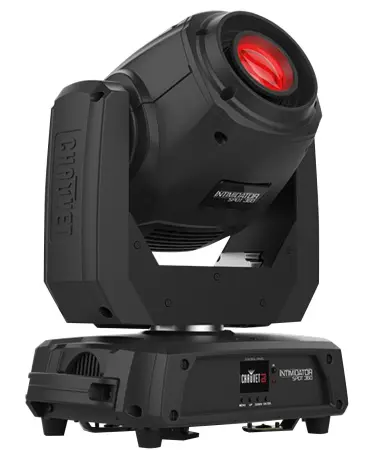

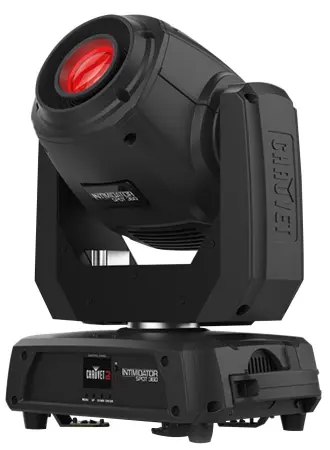

Intimidator Spot 360
Feature-packed moving head fitted with a 100 W LED designed for mobile performances.
Dual rotating prisms split the beam for great effects and cover a larger area.
Throw light farther by decreasing the beam angle 5° using the manual zoom.
Unique 1⁄4-turn hanging bracket allows for single or dual clamp mounting options.
Project crisp gobos from nearly any distance with the motorized focus.
Beams always remain on the dance floor using the built-in, innovative Totem mode.
Set, save, and recall 1 scene manually, directly from the full-color LCD display.
Convenient, wireless, non-DMXcontrol using the optional IRC-6remote.

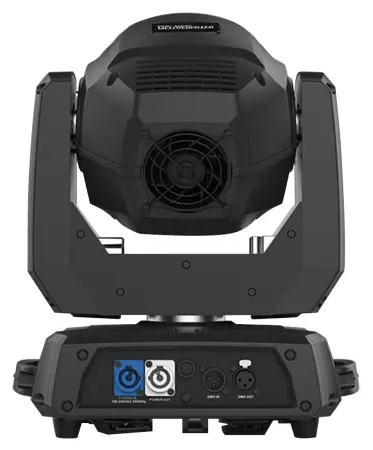

PowerCON®-compatible power input/output connections for power linking.
Fits best in the CHS-360 VIP carry bag or the INTIMROADCASES35X
DMX Channels: 8 or 14
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 8 + white, split colors, continuous scroll at variable speeds
Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
Prism (1): 3-facet round, bidirectional rotation at variable speeds
Prism (2): 5-facet linear, bidirectional rotation at variable speeds
Light Source: 1 LED (white) 100 W, (32 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Zoom Angle (manual): 12° to 17°
Illuminance (12°): 35,010 lux @ 2 m
Illuminance (17°): 19,710 lux @ 2 m
Illuminance (12°): 5,470 lux @ 5 m
Illuminance (17°): 3,097 lux @ 5 m
Power Linking: 3 units @ 120 V; 6 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 250 W, 2.4 A @ 120 V, 60 Hz
Power and Current: 237 W, 1.2 A @ 230 V, 50 Hz
Weight: 25 lb (11.4 kg)
Size: 16.65 x 12.68 x 11.69 in (423 x 322 x 297)
Optional Controllers: IRC-6
Approvals: CE, MET
