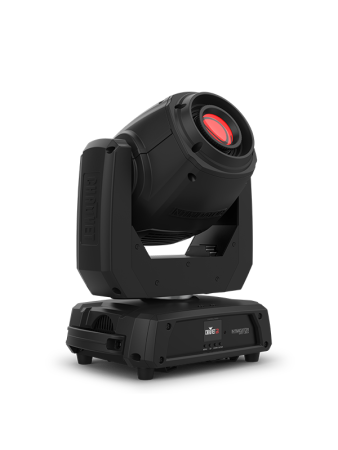

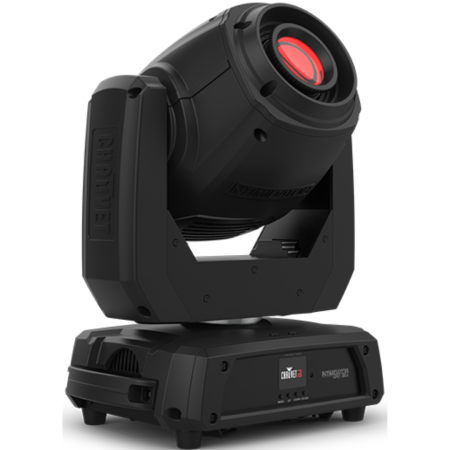

Meet Xcellence with Intimidator Spot 360X, a compact moving head packed with features to make any mobile event Xhilarating! This mover has a built-in RF receiver for wireless control using the new RFC or RFC XL optional remotes that put the power of programming a button push away. An updated CTO color wheel provides fresh color looks and a new starting home position allows for smoother programming and dual rotating prisms split the beam for thrilling effects and wider area coverage. Intimidator Spot 360X is versatile with manual zoom for short or long throw applications. Motorized zoom lets you project crisp gobos from nearly any distance and beams always remain on the dance floor using the built-in, innovative Totem mode. Intimidator Spot 360X also lets you set, save, and recall 1 scene manually, directly from the full color LCD display.

FEATURES:

Compact moving head designed for mobile events

Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

New home position allows for smoother programming

Dual rotating prisms split the beam for great effects and cover a larger area

Manual zoom for short or long throw applications

¼-turn hanging bracket allows for single or dual clamp mounting options

Project crisp gobos from nearly any distance with the motorized focus

Beams always remain on the dance floor using the built-in, innovative Totem mode

Set, save, and recall 1 scene manually, directly from the full-color LCD display

powerCON®-compatible power input/output connections saves setup time

Fits best in the CHS-360 VIP carry bag or the Intimidator Road Case

SPECIFICATIONS:

DMX Channels: 8 or 14
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 8 + white, split colors, continuous scroll at variable speeds
Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Light Source: 1 LED (cool white) 100 W, (4.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Zoom Angle: 12° to 17°
Lumens: 3,967
Power Linking: 5 units @ 120 V; 8 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
217 W, 2.6 A @ 120 V, 60 Hz
211 W, 1.5 A @ 230 V, 50 Hz
Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
Weight: 25 lb (11.4 kg)
Size: 12.7 x 8.7 x 16.7 in (322 x 220 x 423 mm)
Approvals: CE, UKCA, RoHS, MET
Color Temperature: 15,000 K
Prism: 5-facet linear, bi-directional at variable speeds
Prism: 3-facet round, bi-directional at variable speeds
Illuminance (12°) : 41,601 lux @ 2 m
Illuminance (17°) : 22,534 lux @ 2 m
Optional Controllers: RFC, RFC-XL


WHAT'S INCLUDED
Fixture
Power cord
Hanging bracket
Quick Reference Guide

Chauvet INTIMSPOT360X (Chauvet DJ Intimidator Spot 360 X)
