Chauvet DJ Vivid 4

Vivid 4

Vivid 4 is a modular video panel vividly displays content without the need of bulky media servers. Create dazzling video displays with these lightweight video panels that feature Black body LEDs that accurately reproduce high-contrast videos. Vivid 4 makes a perfect DJ façade and seamlessly integrates with Serato for displaying music videos to add gig excitement. Set up is easy and fast with multiple magnets and positioning pins that make getting up and running tool-free and effortless. Stellar reliability and quality are built into Vivid 4. Dual power supplies ensure downstream panels don’t lose signal. Intelligent modules with dedicated memory improve the image quality and simplify maintenance. Panels can be suspended vertically or horizontally offering different aspect ratio options. Multiple Speego connectors mean Vivid 4 sets up twice as fast as other panels.

Highlights
Modular video panel vividly displays content without the need of bulky media servers

Multiple magnets and positioning pins effortlessly allow a tool free, one-man setup

Elongated size with multiple Speego connectors sets up 2x faster than other panels

Creates a perfect DJ façade and seamlessly integrates with Serato for displaying music videos

Panels can be suspended vertically or horizontally offering different aspect ratio options

Dual power supplies improve reliability and ensure downstream panels don’t lose signal

Black body LEDs accurately reproduce high-contrast videos

Intelligent modules with dedicated memory improve the image quality and simplify maintenance

Extremely lightweight due to the magnesium die-cast housing



Specifications
Light Source: 21,632 SMD 2020 LEDs (tri-color RGB) 0.3 W, (60 mA), 50,000 hours life expectancyPower Linking: 7 units @ 120 V; 13 units @ 230 VInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current: 280 W, 2.3 A @ 120 V, 60 Hz
280 W, 1.2 A @ 230 V, 50 HzWeight: 27.6 lb (12.5 kg)Size: 19.7 x 1.9 x 39.4 in (500 x 65 x 1000 mm)Approvals: CE, MET, FCCWavelength: 620 to 625 nm red, 516 to 530 nm green, 460 to 475 nm blueViewing Angle: 120°Maximum Illuminance: 1,200 NITSCalibrated Illuminance: 1,000 NITSContrast Ratio: 4,300:1Refresh Rate: 1,920 HzPixel Density: 43,264 m2 (104 x 208)Pixel Pitch: 4.8 mmMinimum Viewing Distance: 12 ft (4 m)Maximum Vertical Hang: 23 panelsMaximum Horizontal Hang: 17 panelsRequired Controllers: Vivid Drive 23NOptional Mounting Brackets: RB-F50CM, RB-F100CM

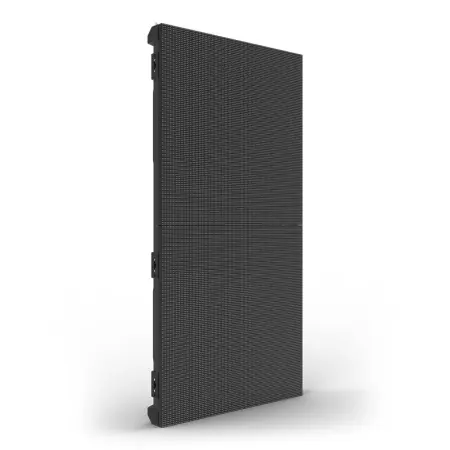

Chauvet Vivid-4 Single Panel (Chauvet DJ VIVID4)
