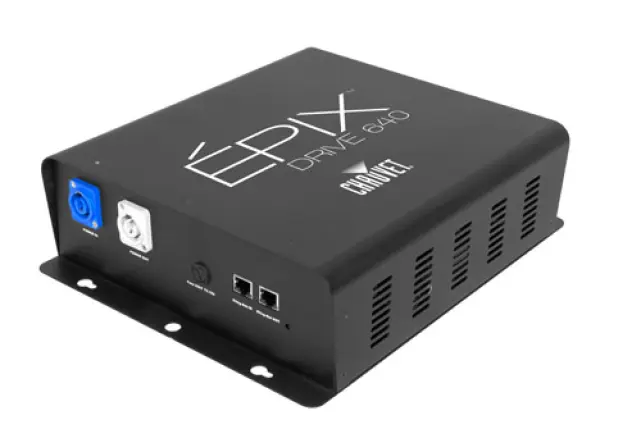

Chauvet DJ EPIX Drive 640

Chauvet EPIX Drive 640 (Chauvet EPIX-DRIVE-640)

The Chauvet E-PIX Drive 640 provides power and data for up to 16 EPIX Strips to rapidly compose a large pixel-mapping video system. It features Neutrik powerCON in and out connections and RJ45 for control connection. ÉPIX Drive 640 uses ArKaos MediaMaster Express as computer software interface.

• Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
• A video/pixel mapping system that doesn't require years of experience or technical
know-how to design, set-up or operate
• Does NOT require piles of processing, driver and signal distribution equipment to
create large scale displays
• Intended to be used with ÉPIX™ Strips and future products
• Utilizes powerCON in and out connections for power and RJ45 for Kling-Net
protocol communication

• Video Source: RJ45 connection (2, RJ45 Kling-Net in and out)
• Video Output: 4, RJ45
• Display Refresh Rate: 400 Hz
• Video Refresh Rate 60 fps
• Provides power and data for up to 16 ÉPIX™ strips
• Computer software interface: Kling-Net protocol via Arkaos MediaMaster Express + Kling-Net
• Input voltage: auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 315 W, 2.6 A @ 120 V 60 Hz
• Power and current: 315 W, 1.5 A @ 208 V 60 Hz
• Power and current: 315 W, 1.4 A @ 230 V 50 Hz
• Power linking: 3 units @ 120 V / 5 units @ 208 V / 6 units @ 230 V
• Size: 10 x 9.1 x 2.9 in (253 x 230 x 74 mm)
• Weight: 6.3 lbs (3 kg)
• Mounting Design: Clamp/bolt mounting holes
• Housing Material: Steel
• Power Connection: Neutrik powerCON
• Control Connection: RJ45
• IP20, dry location
• Approvals: ETLc
