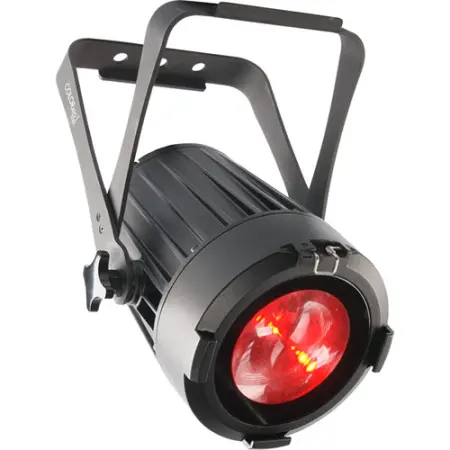

COLORado 1 Solo
Colorado 1 Solo builds on the pedigree of our Colorado line of fixtures with advanced optics and superb performance in any environment, from indoor stages to outdoor festivals. This powerful IP65 outdoor-rated RGBW LED wash projects an even, fully homogenized beam through fast and smooth zoom and precision optics. It utilizes IP rated power and data connectors as well as full convection cooling for a silent and reliable operation, indoors and outdoor.

Features:

Zooming RGBW LED wash for touring, rental and production indoors or out
Completely homogenized wash with superior color mixing and zoom
8° to 55° smooth and fast zoom
All environment operation with IP rated power and DMX connections
Color temperature presets, from 3,200 K to 10,000 K
Selectable, smooth dimming curves for programming versatility
OLED display with password protection

Specifications:

Optical
Light Source: 1 LEDs (quad-color RGBW) 60 W, (4 A), 50,000
hours life expectancy
Beam Angle: 4° to 40°
Field Angle: 8° to 55°
Zoom Angle: 8° to 55°
Illuminance (4°): 5,370 lux @ 5 m
Illuminance (40°): 97 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000
Hz, 25,000 Hz

Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

Construction / Physical
Dimensions: 13.62 x 6.93 x 9.53 in (346 x 176 x 242 mm)
Weight: 11.8 lb (5.4 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (159 mm)

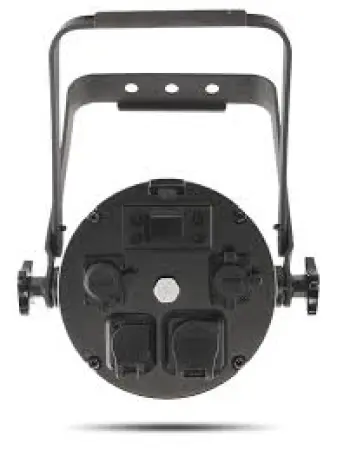

Connections
Power Connection: Edison (Local) plug to Seetronic
Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR IP65
Cable Length (power): 5 ft (1.5 m)

Control
Protocol(s): DMX, RDM
DMX Channels: 9, 12 or 17
Modes/Personalities: 5 personalities (HSIC, SSP, TOUR,
TR16, STD.Y)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 24 units @ 120 V; 40 units @ 208 V; 45 units
@ 230 V
Power and Current: 65 W, 0.548 A @ 120 V, 60 Hz
Power and Current: 62 W, 0.332 A @ 208 V, 60 Hz
Power and Current: 65 W, 0.297 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

What's Included
COLORado 1 SOLO
Seetronic Powerkon IP65 power cord

Chauvet Colorado 1 Solo (Chauvet Pro Colorado1Solo)
