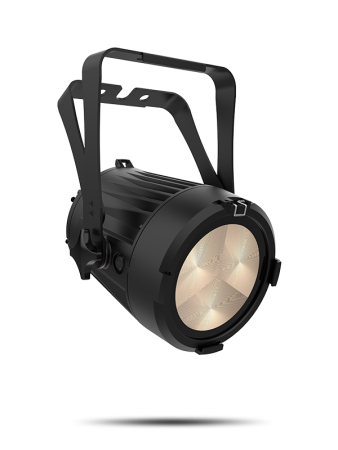

COLORado 2 Solo VW

COLORado-2 Variable White Solo is fitted with three dual-color CW-WW LEDs to project a beautiful and fully homogenized wash with superior color temperature control and zoom. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from stage and studio to outdoor festival productions.

Zooming variable white LED wash for touring, rental, and production, indoors or out

Color Temperature (range): 2800 to 7000 K
Completely homogenized wash with superior color mixing and zoom
5° to 48° smooth and fast zoom
All environment operation with IP rated power and DMX connections
Color temperature presets, from 2800 K to 7000 K
Selectable, smooth dimming curves for programming versatility
OLED display with password protection

WHAT'S INCLUDED
COLORado 2 SOLO VW
Seetronic Powerkon IP65 power cord

OPTICAL
Light Source: 3 LEDs (dual-color CW-WW) 35 W, (2.42A), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 7000 K
Color Temperature (at full): 4565 K
Front lens diameters: 160 mmCRI: 96
Beam Angle: 4.8° to 35.5°
Field Angle: 7.3° to 48.4°
Cuto≠ Angle: 9° to 56.7°
Zoom Range: (Beam angle to Cuto≠ angle) 4.8° to 56.7°
Zoom Range: (Narrowest Beam Angle to Widest Field Angle) 4.8° to 48.4°
Lumens (4.8°) : 1,555
Lumens (48.4°) : 1,731
Illuminance (4.8°) : 8,744 lux @ 5 m
Illuminance (48.4°) : 213 lux @ 5 m
Selectable PWM : 600 Hz, 1200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 8.26 x 10.7 x 15.2 in (210 x 274 x 387 mm)
Weight: 16.0 lb (7.2 kg)
Exterior Color: Black
Housing Material: Magnesium
Accessory Holder/Gel Frame Size: 7.5 in (190 mm)

CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 4, 7 10 or 10
STDModes/Personalities: 5 personalities (1CH, 4CH, 7CH, 10CH, 10CH Steady)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V;
Power and Current: 127 W, 1.064 A @ 120 V, 60 Hz
Power and Current: 125 W, 0.627 A @ 208 V, 60 Hz
Power and Current: 123 W, 0.571 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin DMX Cables

Chauvet COLOR Ado 2 Solo VariWhite (Chauvet Pro COLORado-2 VW Solo)
