Chauvet Pro COLORado 4 IP
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

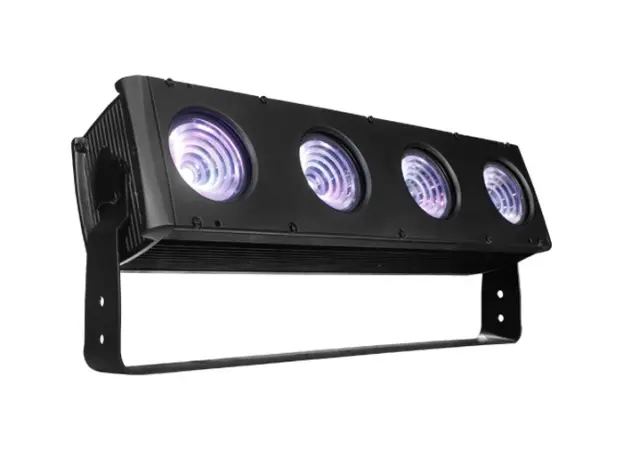

Chauvet COLORado 4 IP
COLORado â„¢ 4 IP takes quad-colored LED technology to a new level. This outdoor rated, linear wash light features four powerful 40-watt quad-colored (RGBW) LEDs. The incorporation of white LEDs widens the color palette while 15-degree lenses produce a powerful punch of homogenized color. Individual pixel programming enhances the visual impact of this versatile and resilient fixture. A removable yoke doubles as a mounting bracket for stacking an array of up to four units that maintain a perfect pixel pitch.
Features:
• DMX channels: 3, 4, 5, 6, 11, 12, 16
• Operating modes
3-channel: RGB
3-channel: HSV
4-channel: RGBW
4-channel: Dimmer, RGB
4-channel: 2,700K Pix 1,2,3,4 Dimmer
5-channel: Dimmer, RGBW
6-channel: Dimmer, RGBW, Strobe
11-channel: Dimmer, RGBW, Color Macro, Strobe, Auto/Custom, Auto Speed, Dimmer Speed, Pix Control
12-channel: R1, G1, B1, R2, G2, B2, R3, G3, B3, R4, G4, B4
16-channel: R1, G1, B1, W1, R2, G2, B2, W2, R3, G3, B3, W3, R4, G4, B4, W4
16-channel: 16-bit Dimmer, 16-bit RGBW, Color Macro, Strobe, Auto/Custom, Auto Speed, Dimmer Speed, Pix Control
• Silent operation
• Fantastic output with low-profile footprint
• Stunning color mixing
• Pixel control of each LED
Specifications:
• DMX connectors: 5-pin
• Source: 4 (40 W) RGBW LEDs, 50,000 hours
• Light source: Red (0.990 mA x 7.26 VDC = 7.19 W)
Green (0.975 mA x 12.45 VDC = 12.03 W)
Blue (0.986 mA x 9.82 VDC = 9.69 W)
White (0.989 mA x 9.90 VDC = 9.79 W)
• Installed Optic(s): 15°
• Beam angle: 12°
• Field angle: 26°
• Illuminance: 3,600 lux @ 5 m
• Color Temperature Range: 3,200 ~ 10,000 K
• Power linking: 5 units @ 120 V/ 9 units @ 208 V/ 10 units @ 230 V
• Input voltage: Auto-ranging 100~240 VAC, 50/60 Hz
• Power and current: 222W, 1.89A @ 120V, 60Hz
216W, 1.04A @ 208V, 50Hz
216W, 0.94A @ 230V, 50Hz
• Weight: 22.4 lbs (10.16 kg)
• Dimensions: 22 x 5.4 x 8.7 in (560 x 138 x 221 mm)
• Approvals: CE, MET
• Environment: IP66, suitable for outdoor operation
