Chauvet Pro COLORado Batten 72X

$1,160.00 new
Reviews: 0 Description Financing Q&A: 0
or $105/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time
Low Price Guarantee



or $ 105/mo $0 Shipping, $0 Tax


Product Description

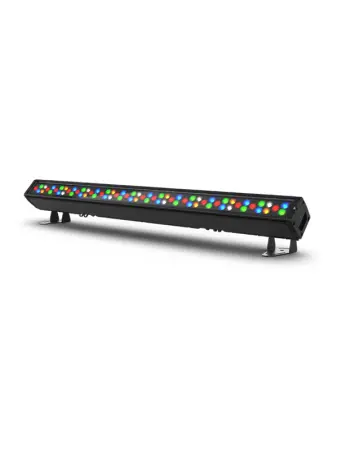

COLORado Batten 72X is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs. The compact, tour-ready unit produces superb color rendering and a vast palette from soft pastels to saturated hues. Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs. Integrated trunnions accommodate clamps for vertical or horizontal hanging.

AT A GLANCE
RGBAW LED Batten for touring, rental, and production, indoors or out
All environment operation with IP rated power and DMX connection
Color temperature presets, from 3200 K to 10000 K
Selectable, smooth dimming curves for programming versatility
Built for touring, live event, television, and theatrical productions
Large, easy to navigate display with password protection

SPECIFICATIONS
OPTICAL
Light Source: 72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy
Color Temperature (range): 3200 to 10000 K
CRI (3200 K): 80
Installed Optics: 24°
Beam Angle (Horizontal): 22°
Beam Angle (Vertical): 18°
Field Angle (Horizontal): 39 °
Field Angle (Vertical): 34°
Lumens: 3,631
Illuminance (total): 1730 lux @ 5 m
Selectable PWM: 600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz

DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)
Weight: 18.6 lb (8.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast

CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
Modes/Personalities: 18 personalities

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
COLORado Batten 72X
Seetronic powerKON® IP65 power cord
(2) Omega brackets

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin IP DMX Cables

Chauvet ColoradoBatten72X
