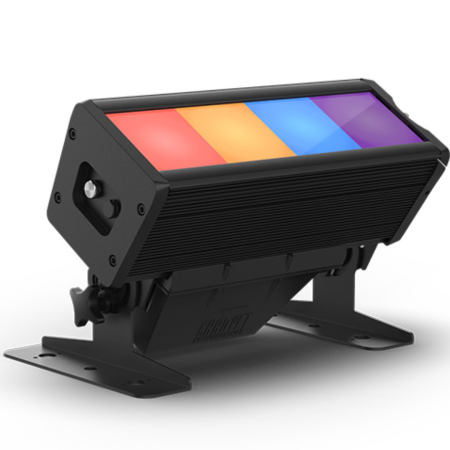

The Chauvet COLORado Solo Batten 4 is a unique RGBAW 4-cell LED batten with seamless end-to-end color mixing. This compact, multi-purpose fixture has four completely homogenized, individually-controlled square sections that project smooth color-mixing without separation or dimmed lens corners. This versatile batten is IP65-rated and can be used as a wash or for pixel-mappable eye-candy effects. It also compliments our COLORado Solo Batten perfectly. This small but robust fixture was built for touring, festivals, installations, and theatrical productions. This unit includes IP-rated power, DMX, and Ethernet connections, as well as a large, password-protected display.


AT A GLANCE
RGBAW 4-cell LED Batten with seamless end-to-end color for wash or pixel mapping

Completely homogenized color with no separation or dimmed lens corners

All-environment operation with IP rated power, DMX, and Ethernet connections

Color temperature presets, from 3200 K to 10000 K

Selectable, smooth dimming curves for programming versatility

Built for touring, live event, television, and theatrical productions

Large, easy-to-navigate display with password protection


SPECIFICATIONS
OPTICAL
Light Source: 48 LEDs (8 red, 8 green, 8 blue, 8 amber, 16 white) 3 W, (612 mA) 50,000 hours life expectancyColor Temperature (range): 1800 to 8000 KCRI (3200 K): 77.2Installed Optics: 18°Beam Angle (Horizontal): 18°Beam Angle (Horizontal w/ Filter): 35°Beam Angle (Vertical): 17°Beam Angle (Vertical w/ Filter): 16°Field Angle (Horizontal): 34°Field Angle (Horizontal w / Filter): 66°Field Angle (Vertical): 30°Field Angle (Vertical w / Filter): 32°Lumens: 6,968Illuminance (total): 1,270 lux @ 5 mIlluminance w/ Filter (total): 432 lux @ 5 mSelectable PWM: 600, 1,200, 2,000, 4,000, 6,000, 25,000
DYNAMIC EFFECTS
Dimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 0 to 25HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Modes: 5Built-in Automated Programs: YesCustomizable Programs: YesRecall Custom Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 14.65 x 9.06 x 9.96 in (372 x 230 x 253 mm)Dimensions (shipping size): 17.32 x 8.85 x 13.58 in (440 x 225 x 345 mm)Weight:17.2 lb (z)Weight (shipping weight): 20.50 lb (9.3 kg)Exterior Color: BlackHousing Material: Aluminum die-castAccessory Holder/Gel Frame Size: 13.5 x 3.81 in (342.9 x 97 mm)
CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Power Output: Seetronic Powerkon IP65Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65Cable Length (power): 5 ft (1.5 m)


CONTROL
Control Protocol: Art-Net, DMX, Art-Net to DMX, sACN, RDMDMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16DMX Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56Art-Net Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16Art-Net Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56Modes/Personalities: 18 personalities
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 14 units @ 120 V; 24 units @ 208 V; 26 units @ 230 VPower and Current: 113 W, 0.960 A @ 120 V, 60 Hz [4.2 A inrush]Power and Current: 110 W, 0.566 A @ 208 V, 60 Hz [3.60 A inrush]Power and Current: 111 W, 0.516 A @ 230 V, 50 Hz [2.6 A inrush]Power and Current (resting): 11 W, 0.085 A @ 120 V, 60 HzPower and Current (resting): 25 W, 0.117 A @ 208 V, 60 HzPower and Current (resting): 27 W, 0.115 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, METIP Rating: IP65, temporary outdoor/wet useTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
COLORADO SOLO BATTEN 4, with glare shieldSeetronic Powerkon IP65 power cordWall Wash FilterOmega BracketsQuick Reference Guide
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCNNeutrik TRUE1 power linking cables5-pin DMX CablesEthercon CablesColorado Solo Batten 4 Barndoor

Chauvet Color Ado Solo Batten 4 (Chauvet Pro ColorAdo Solo Batten 4)
