Chauvet Pro COLORdash Batten-Quad 12

$519.99 new
CALL or VIP REGISTRATION (free) new
Warranty



Available - Ships in 1-2 days Low Price Guarantee



or $47/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

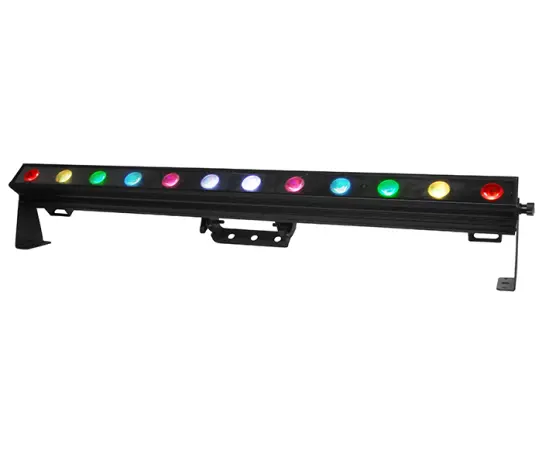

Chauvet COLORdash Batten Quad-12 (Chauvet COLOR Dash Batten Quad 12)

COLORdash™ Batten Quad-12 is a linear wash fixture with 12 individually controlled quad-colored RGBA LEDs that produce any variation of white, as well as richly saturated colors, due to the inclusion of amber LEDs. It maintains an even pixel pitch when used in multiples, either stacked in an array using the optional CBB6 bracket or lined up end-to-end. Setup is easy when using the hanging bracket, floor trunnions, 3- and 5-pin DMX connectors, and power linking

Features:

• Silent flicker free operation
• Individual pixel control
• Selectable dimming curves
• Pre-built auto programs
• Maintain pixel pitch end to end or stacking
• All metal construction for added durability

Specifications:

• DMX Channels: 4, 6, 10, 48 or 52
• DMX Connectors: 3- and 5-pin
• Light Source: 12 (RGBA) 7W (500mA) LEDs 50,000hrs
• Strobe Rate: 0 - 20Hz
• Beam Angle: 22°
• Field Angle: 31°
• Illuminance: 539 lux @ 5m
• Color Temperature Range: 2,800 – 10,000K
• IP Rating: IP20
• Startup Temperature: -4° - 113°F (-20°C - 45°C)
• Operating Temperature: -22° - 113°F (-30°C - 45°C)
• Cable Length: 5ft (1.5m)
• Power Linking: 9 units @ 120V; 16 units @ 208V; 17 units @ 230V
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 175W, 1.45A @ 120V 60Hz
• Power and Current: 168W, 0.81A @ 208V 60Hz
• Power and Current: 175W, 0.76A @ 230V 50Hz
• Weight: 10.6lbs (4.8kg)
• Size: 41 x 3.2 x 6.5in (1,041 x 82 x 164mm)
• Approvals: CE, MET
show full description
