Colordash Par H7IP is an ultra compact, all-weather RGBWAUV LED wash at home in any environment. It delivers a beautifully mixed, soft field of deeply saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

Features:

Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
At home in any weather conditions with IP rated power and DMX connections
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Double-bracketed yoke doubles as floor stand

Specifications:

Optical
Light Source: 7 LEDs (hex-color RGBAW+UV) 10 W, (500 mA),
50,000 hours life expectancy
Color Temperature (range): 2800 to 10,000 K
Beam Angle: 21°
Field Angle: 47°
Illuminance (total): 674 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000
Hz, 25,000 Hz

Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical
Dimensions: 11.02 x 9.44 x 6.06 in (280 x 240 x 154 mm)
Weight: 7.8 lb (3.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.5 in (165 mm)

Connections
Power Connection: Edison(Local plug to Seetronic Powerkon
IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX, RDM
DMX Channels: 6, 8 or 13
Modes/Personalities: 3 personalities (6, 8, 13)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 26 units @ 120 V; 46 units @ 208 V; 50 units
@ 230 V
Power and Current: 63 W, 0.52 A @ 120 V, 60 Hz
Power and Current: 65 W, 0.31 A @ 208 V, 60 Hz
Power and Current: 66 W, 0.28 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
Seetronic Powerkon IP 65 power cord
Gel frame

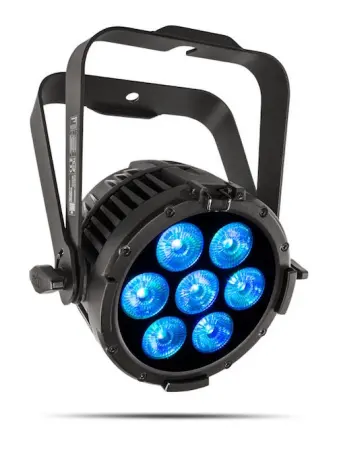

Chauvet Colordash Par H7 IP (Chauvet Pro COLORDASHPARH7IP)
