Chauvet ÉPIX Bar 2.0 (Chauvet Epics Bar 2.0)

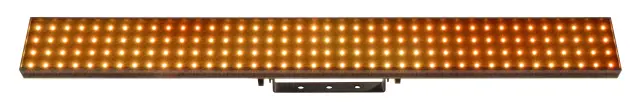

ÉPIX™ Bar 2.0 is a pixel mapping, one-meter bar that sets up in minutes with minimal technical know-how. Each bar houses 160 tri-colored SMD 5050 LEDs, and has a pixel pitch of 25 millimeters and 120-degree viewing angle. Pixel mapping displays are achieved in minutes using multiple control options—industry standard Art-Net and Arkaos Kling-net. Works seamlessly with ÉPIX™ Strip 2.0 and uses EPIX™ Drive 642 for data and power distribution.







Features:

• Near-effortless pixel mapping and video one-meter bar, with four rows of LEDs, that combine to make a system that sets up in minutes with minimal technical know-how
• Easily control each using Art-Net (3.0 compliant) or Arkaos Kling-Net
• Quickly configure these slim, one-meter strips and link up to four inline with network cables or create vertical effects with new hardware linking system
• Achieve wide viewing angles and excellent color rendering with tri-colored SMD5050 LEDs covered by a smooth diffuser plate
• Easily manage configuration and software updates with the network-based remote web server
• Works with Arkaos Media Master Express for a plug-n-play system that requires little training to operate
• Optional EPIX™ Drive 642 required for operation

Specifications:

• Light Source: Tri –color SMD 5050 LEDs
• Luminance: 850 Nits
• Pixels/Bar: 160 Pixels
• Pixel Pitch: 25 mm
• Dedicated Controller: Epix™ Drive 642
• Linking: N/A
• Display Refresh Rate: 4.5KHz
• Viewing Angle: 120°
• IP Rating: IP20
• Power and Current: 51W, 0.36A @ 120V 60Hz
• Power and Current: 57W,0.21A @ 208V 60Hz
• Power and Current: 63W, 0.18A @ 230V 50Hz
• Weight: 7.6lbs (3.5kg)
• Size: 39.4 x 4.2 x 4.6in (1000 x 107 x 117mm)
• Approvals: CE, MET, RoHs
