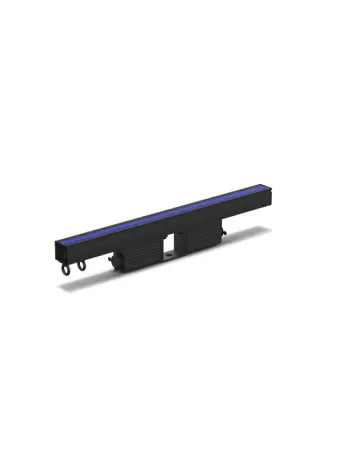

ÉPIX Strip IP 50 is an IP65 outdoor-rated pixel-mapping ½ meter LED strip fixture, featuring 50 LEDs. Ideal for use in tight spaces, this versatile fixture also comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort. Power and control it through our new ÉPIX Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).

AT A GLANCE
Pixel-mapping IP65 outdoor half-meter 50 x 1 LED strip for showing video and/or motion graphics
Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast
Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
Reduce programming time and increase application by using the alternate personalities of 7 channel, multi-section control (15-30 channels), or use the Pixel personality (150 channels) for use with video servers
Increase viewing angle by using the dome or square accessory
ÉPIX Drive 2000 IP required for operation

SPECIFICATIONS
OPTICAL
Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle (with installed Square Milky Filter): 160°
Viewing Angle (with optional Round Milky Filter): 160°
Viewing Angle (with optional Black Stealth Filter): 125°
Illuminance – open: 8,640 NITS
Illuminance - Square Milky Filter (installed): 2,470 NITS
Illuminance - Black Stealth Filter (included): 1,455 NITS
Illuminance – Round Milky Filter (included): 1,360 NITS
Pixels: 50 x 1
Pixel Pitch: 10 mm
Refresh Rate: 4,800 Hz (S-PWM)

CONSTRUCTION / PHYSICAL
Dimensions (with installed Square Milky Filter ): 19.68 x 1.33 x 3.93 in (500 x 34 X 100 mm)
Dimensions: (with included Black Stealth Filter) 19.68 x 1.33 x 3.46 in (500 x 34 x 88 mm)
Dimensions (with included Round Milky Filter): 19.68 x 1.77 x 5.03 in (500 x 45 X 128 mm)
Weight: 3.4 lb (1.5 kg)
Exterior Color: Black
Housing Material: Aluminum

CONNECTIONS
Data Connectors: IP-65 4-pin XLR
Physical Linking: 20 inline ÉPIX Strip IP per port of Drive 2000 IP
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX IP fixtures: 100 ft (30 m)

CONTROL
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels Art-net, sACN: 7, 15, 30, 75, or 150

ELECTRICAL
Power and Current: 16 W, 0.133 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.082 A @ 208 V, 60 Hz
Power and Current: 17 W, 0.073 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, outdoor/wet
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
ÉPIX Strip IP 50
Square milky filter (installed)
Round milky filter (included in box)
Black stealth filter (included in box)

REQUIRED ACCESSORIES
Controller (required): ÉPIX Drive 2000 IP
Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)

OPTIONAL ACCESSORIES
ArKaos Media Master Express + KN software
Clamps
Neutrik powerCON cables
Neutrik etherCON cables
