Chauvet Pro Epix Tile 2.0
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Chauvet Professional EPIX Tile 2.0 (Chauvet Pro EPIC Tile 2)

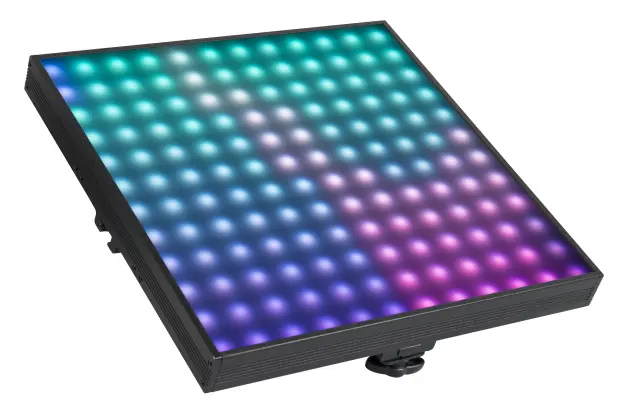

ÉPIXâ„¢ TILE 2.0 is a 12-inch square tile of 144 tri-color SMD 5050 LEDs, in a 12 x 12 pixel array. The ÉPIXâ„¢ Tile 2.0 has a 25-millimeter pixel pitch with a 120° viewing angle and can be set up and configured in minutes with little technical expertise. The integrated, interlocking, and load bearing hardware easily supports the ÉPIXâ„¢ Tiles in a number of suspended and ground supported combinations. The ÉPIXâ„¢ Tile 2.0 uses the ÉPIXâ„¢ Drive 642 for power and data, and can be combined seamlessly with all other ÉPIXâ„¢ 2.0 products using the interlocking hardware.
Features:
• Near-effortless pixel mapping and video 12 x 12 pixel panel, that combines with the Épixâ„¢ Bar 2.0 and Épixâ„¢ Strip 2.0 to make a system that sets up in minutes with minimal technical know-how
• Easily control each using Art-Net™ (3.0 compliant) or ArKaos Kling-Net
• Quickly configure these slim, rectangular tiles with new hardware linking system
• Achieve wide viewing angles and excellent color rendering with tri-color SMD 5050 LEDs covered by a smooth diffuser plate
• Easily manage configuration and software updates with the network-based remote web server
• Works with ArKaos MediaMaster for a plug-n-play system that requires little training to operate
• ÉPIXâ„¢ Drive 642 is required for operation
Specifications:
• Control Protocol: Art-Net™, Kling-Net
• Art-Net Channels: 432
• Data Connectors: 1 Ethernet (RJ45)
• Light Source: 144 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Pixels: 12 x 12
• Pixel Pitch: 25 mm
• Viewing Angle: 120°
• Illuminance (clear filter): 3,290 NITS
• Illuminance (frosted filter): 2,900 NITS
• IP Rating: IP20, dry location
• Power and Current: 51 W, 0.36 A @ 120 V, 60 Hz
• Power and Current: 57 W, 0.21 A @ 208 V, 60 Hz
• Power and Current: 63 W, 0.18 A @ 230 V, 50 Hz
• Weight: 5.6 lb (2.5 kg)
• Dimensions: 11.8 x 11.8 x 4.6 in (300 x 300 x 117 mm)
• Housing Material: Aluminum alloy
• Controller (required): ÉPIXâ„¢ Drive 642
• Approvals: CE, MET
