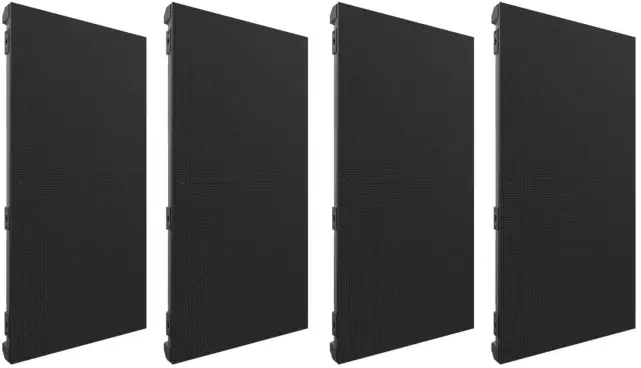

F3 is a 3.9 mm pitch 1 m x 0.5 m LED video panel equally suited for installations and rentals. It runs on the Novastar control protocol and is fully front & rear serviceable with easily accessed magnetic LED modules. The panels may be mounted directly on a flat wall due to the front-service option. The panel features powerful magnets in the frame, which assist with hanging the panels.

FEATURES
3.9 mm pitch video panel works with the VIP Drive 43Nova, using the Novastar control protocol
Black body LEDs accurately reproduce high contrast video quality
Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance
1,000 x 500 mm magnesium die-cast housing makes this product among the lightest in its class
Magnetic LED modules and modular control box make service fast and easy
Full front and rear service maximizes installation and maintenance
Modular system allows for front installation onto a flat structure, maximizing installation flexibility
Magnetic connection and positioning pins assist in hanging panels
Dual backup power supplies for more stable displays
Intelligent modules with dedicated memory improve the image quality and simplify maintenance
Easily replace the LED masks without tools so your display remains flat even after mishandling

OPTICAL
Light Source: 32,768 LEDs (tri-color RGB) SMD 2121, 50,000 hours life expectancy
Color Wavelength: red (619 to 624 nm), green (522 to 525 nm), blue (468 to 471 nm)
Viewing Angle: 140°
Calibrated Illuminance: 1,500 NITS
Contrast Ratio: 20,776 : 1
Pixels: 128 x 256
Pixel Pitch: 3.9 mm
Minimum Viewing Distance: 10 ft (3m)
Pixel Density: 65,536/m2
Display Refresh Rate: 3,840 Hz (S-PWM)

PHYSICAL
Dimensions: 19.69 x 3.5 x 39.37 in (500 x 89 x 1000 mm)
Weight: 28.6 lb (13kg)
Exterior Color: Black
Housing Material: Magnesium die-cast
Maximum vertical hang: 16 panels
Maximum horizontal hang: 22 panels
Transparency: 0%

CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic powerKON
Power Input: Seetronic powerKON
Power Output: Seetronic powerKON
Data Connectors: Seetronic etherKON
Cable Length (signal extension): 4 ft (1.2 m)
Cable Length (power): 6 ft (1.8 m)
Cable Length (power extension): 6 ft (1.8 m)

CONTROL
Control Protocol: Novastar
Maximum Panels/VIP Drive 43Nova: 20/port, 80/Drive (4 ports) (Video products only)
Video Input (compatible): 60 Hz

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
Power and Current: 263 W, 2.18 A @ 120 V, 60 Hz
Power and Current: 265 W, 1.28 A @ 208 V, 60 Hz
Power and Current: 269 W, 1.16 A @ 230 V, 50 Hz

CERTIFICATIONS/QUALIFICATIONS
CE, MET
IP Rating: IP31, dry location
Thermal Dissipation @120V: 897 BTU per hour
Thermal Dissipation @ 208V: 904 BTU per hour
Thermal Dissipation @ 230V: 918 BTU per hour
Temperature (Ambient): Black
MET Listing Number: E114016-1132, E114016-1107
US Safety: UL 60950-1
Canadian Safety: CSA C22.2 No. 60950-1

WHAT'S INCLUDED
4 F3
1 Road case
1 Seetronic powerKON power cord
4 Seetronic powerKON power linking cords
4 Seetronic etherKON signal linking cords

OPTIONAL EXCESSORIES
ArKaos Media Master Express + KN software
Clamps
Neutrik powerCON cables
Neutrik etherCON cables
MT-03 LED module removal tool

REQUIRED ACCESSORIES
Controller (required): VIP Drive 43Nova
Compatible Mounting Options: F-series Rig Bar (0.5 m, 1 m)(truss mounting) M12 Bolt/Clamp (rear mounting)
