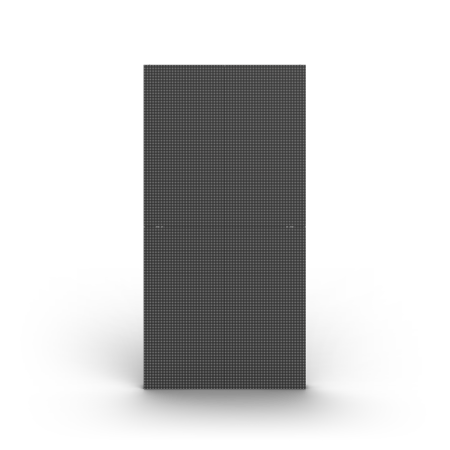

Chauvet Pro F5IP (SMD LED Video Panel 4-Pack)

$9,500.00 new
Warranty
Reviews: 0 Description Financing Q&A: 0
or $864/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time Low Price Guarantee



or $ 864/mo $0 Shipping, $0 Tax


Product Description
F5IP is an IP65-rated 5.9 mm pixel pitch LED video panel equipped with a 1920 Hz refresh rate and 6,000 NITS to make video images stand out both indoors and outdoors. Quick and easy setup is optimized by its advanced light-weight die-cast magnesium housing and magnetic assisted hanging features. This magnetic LED module also simplifies maintenance and installation since it’s both front and rear serviceable. F5IP comes fully equipped with a road case and power/data linking cables.

FEATURES
5.9 mm pitch high resolution outdoor video panel works with the VIP Drive 43Nova, using the Novastar control protocol
High quality black body LEDs accurately reproduce video at 14-bit grayscale, operating on the A5s receiver card from Novastar
High performance digital LED drivers deliver 1920 Hz refresh rate and a clear, vibrant image
Intelligent, high speed magnetic LED modules with dedicated memory stores factory calibration, ensuring optimal image quality, color uniformity, and simplifies maintenance by making service fast and easy
Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance
1,000 x 500 x 82.5 mm, 30 lb (13.6 kg) magnesium die-cast housing (500 x 500 mm available) makes this product among the lightest and slimmest in its class without compromising strength, capable of hanging up to 23 panels vertically safely
Specialized frame design allows for overhead hanging, ground stacking, and wall mounting maximizing installation flexibility and aftermarket front and rear service; simply push out modules from the rear using the handles, or use the included service tool from the front
Front LED surface protective design features prevent damage when handling: 4x stainless steel standing feet to keep the LEDs from touching the floor, specialized LED board design to improve impact resistance up to 3x that of other panels, and resilient led mask design to optimize image viewing angle and uniformity without exposing the LEDs to front or side impacts
Strong, magnetic assisted hanging makes setting up the panels fast and easy with a minimal crew
Optimized heat dissipation ensures an even color across the F5IP
Dual power supplies increase the stability of the system
Cable management solutions include angled connectors on panels for easy operation, long cables which can connector horizontally or vertically, and handles on the bottoms of each panel to organize cables and keep them neat

OPTICAL
Light Source: 14,112 LEDs (tri-color RGB) SMD 2727, 50,000 hours life expectancy
Color Wavelength: red (615 to 630 nm), green (515 to 535 nm), blue (460 to 475 nm)
Viewing Angle (H/V): 160°/155°
Calibrated Illuminance: 5,000 NITS
Maximum Illuminance: 6,000 NITS
Contrast Ratio: 12,000:1
Grayscale: 14-bit
Receiver Card: A5s
Drive Type: 1/7
Pixels: 84 x 168
Pixel Pitch: 5.9 mm
Minimum Viewing Distance: 20 ft (6 m)
Pixel Density: 28,224/m2
Display Refresh Rate: 1,920 Hz (S-PWM)

PHYSICAL
Dimensions: 19.69 x 3.25 x 39.37 in (500 x 82.5 x 1000 mm)
Weight: 30 lb (13.6 kg)
Threaded Bolt: M12
Exterior Color: Black
Housing Material: Magnesium die-cast
Maximum vertical hang: 23 panels
Maximum horizontal hang: 17 panels
Transparency: 0%

CONNECTIONS
Power Connection: Seetronic etherKON®
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: Seetronic® etherKON®
Cable Length (signal extension): 4 ft (1.2 m)
Cable Length (power): 6 ft (1.8 m)
Cable Length (power extension): 4 ft (1.2 m)

CONTROL
Control Protocol: Novastar
Maximum Panels/VIP Drive 43Nova2: 46/port, 184/Drive (4 ports)
Video Input (compatible): 60 Hz

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
Power and Current: 339 W, 2.82 A @ 120 V, 60 Hz
Power and Current: 329 W, 1.58 A @ 208 V, 60 Hz
Power and Current: 345 W, 1.50 A @ 230 V, 50 Hz
Power and Current (resting): 20 W, .214 A @ 120 V, 60 Hz
Power and Current (resting): 18 W, .217 A @ 208 V, 60 Hz
Power and Current (resting): 18 W, .196 A @ 230 V, 50 Hz

CERTIFICATIONS/QUALIFICATIONS
CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)
MET Listing Number: E113093-1110, E113093-1125
US Safety: UL 60950-1
Canadian Safety: CSA C22.2 No. 60950-1

WHAT'S INCLUDED
4 F5 IP
1 Seetronic® powerKON® power cord
4 Seetronic® powerKON® power linking cords
4 Seetronic® etherKON® signal linking cords
Front service tool
5 pcs spare LED masks
Warranty Card
User Manual

OPTIONAL ACCESSORIES
ArKaos Media Master Express + KN software
Neutrik powerKON cables
Neutrik etherCON cables
DRB-100CM
DRB-50CM
DRB-CurveX2
VIDTOURCART
GROUNDSUPPORT2KIT
VIDCURVEKIT

REQUIRED ACCESSORIES
Required Software: Nova LCT Mars
Controller (required): VIP Drive 43Nova or VIP Drive 43Nova 2
Compatible Mounting Options: Dual Function Rig Bars (DRB-F00CM, DRB-F50CM), F-series Rig Bar (RB-F100CM, RB-F50CM) (overhead hanging), M10 Bolt/Clamp (front mounting), M12 Bolt/Clamp (rear mounting)
