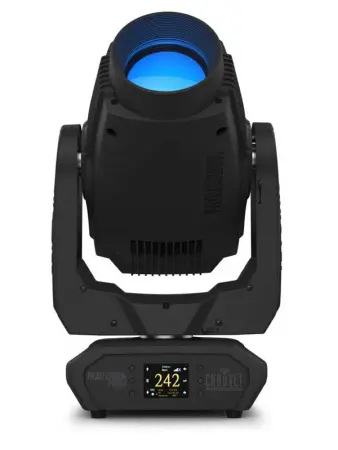

Maverick Force 1 Spot is a lightweight moving head with a big presence. The tour-ready unit features an output of 20,000 lumens and an artillery of speedy effects in a deceptively compact frame, just under 50lbs. Maverick Force 1 Spot features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. Motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping as well. Custom glass gobos created in collaboration with leading designers, and a continuous animation wheel can all be stacked on top of each other. Control as you see fit with DMX, sACN, Art-Net or W-DMX.
Fully featured, compact and lightweight 470 W LED yoke spot fixture including CMY + CTO color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static, and an animation wheel.
16-bit dimming of master dimmer for smooth control of fades.
Variable CMY + CTO color mixing system to create a wide pallet of colors.
CRI and CTB filters on color wheel for added flexibility.
DMX, WDMX, sACN, and Art-Net for full flexibility of control options.
RDM enabled for remote addressing and trouble shooting.
6.3° to 54.4° zoom range for variable beam sizes.
Iris, 5-facet prism, and frost for beam control.
True 1 compatible power input.
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup.
USB slot for software uploads.
Battery backup display with auto-rotate depending on fixture orientation.
Light Source: 1 LED (CW) 470 W, (4 A), 7500K, 50,000 hours life expectancy
Color Temperature (at full): 7099 K
CRI with CRI Filter: 89.4
Front Lens Dia: 127 mm
Beam Angle: 6.3° to 45.7°
Field Angle: 7.3° to 53°
Cutoff Angle: 7.6° to 54.4°
Zoom Range: 6.3° to 54.4°
Lumens - Source: 35,000
Lumens – Output: 21,172
Illuminance (7.3°): 43,485 lux @ 5 m
Illuminance (54.4°): 1,793 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,00 Hz
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY+ CTO flags
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (9 glass), static, continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
Animation wheel: static, motorized, continuous scroll at variable speeds
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Dim Curves: 4
CONSTRUCTION / PHYSICAL
Dimensions: 15.5 x 9.8 x 25.0 in (394 x 250 x 636 mm)
Weight: 48 lb (21.8 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65

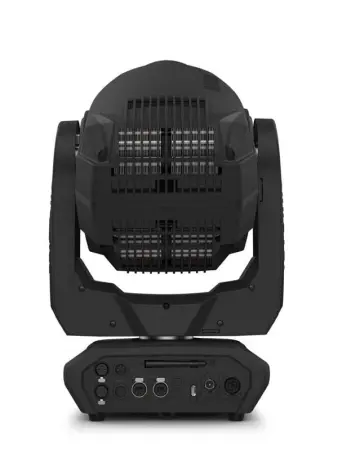

Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Control Protocol: Art-Net, sACN, DMX, W-DMX
DMX Channels: 25 or 32
Art-Net Channels: 25 or 32
Modes/Personalities: 2 personalities (25, 32)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 670 W, 6.70 A @ 100 V, 60 Hz
Power and Current: 660 W, 5.45 A @ 120 V, 60 Hz
Power and Current: 637 W, 3.10 A @ 208 V, 60 Hz
Power and Current: 632 W, 2.79 A @ 230 V, 50 Hz
Power and Current: 630 W, 2.70 A @ 240 V, 50 Hz
Power and Current (resting): 80 W, 0.801 A @ 100 V, 60 Hz
Power and Current (resting): 80 W, 0.665 A @ 120 V, 60 Hz
Power and Current (resting): 84 W, 0.397 A @ 208 V, 60 Hz
Power and Current (resting): 84 W, 0.356 A @ 230 V, 50 Hz
Power and Current (resting): 89 W, 0.361 A @ 240 V, 50 Hz
Power Linking 13.6A: 2 @100v, 2 @120v, [email protected], [email protected], [email protected]
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 37 dB level @ 1 m
Noise Level (Static - Full): 47.3 dB level @ 1 m
Noise Level (Static - Eco): 40.7 dB level @ 1 m
Noise Level (Static - Auto): 40.9 dB level @ 1 m
Noise Level (Max): 49.5 dB level @ 1 m
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
Maverick Force 1 Spot
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
Ethercon Extension cables
IP Rated Seetronic® Powerkon Extensions
UPLOAD_08 software uploader
