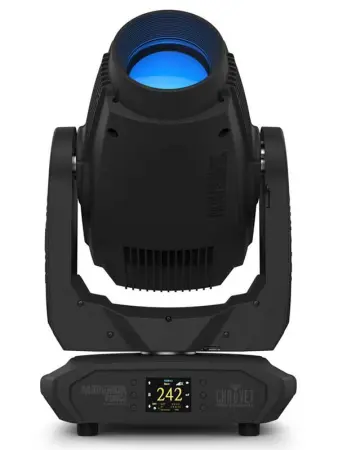

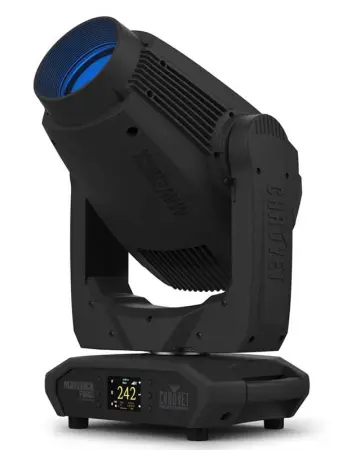

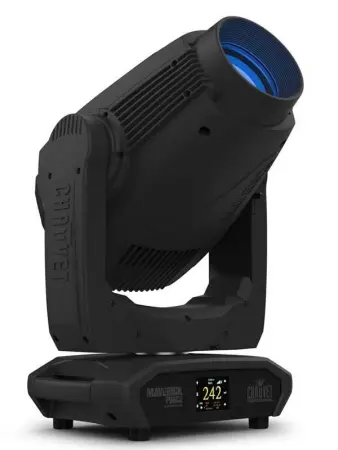

Maverick Force 2 Profile is a lightweight, tour-grade moving head with a big presence. The powerful unit features an output of over 20,000 lumens and an artillery of speedy effects housed in a deceptively compact frame, under 60lbs. Maverick Force 2 Profile features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. A custom-built framing system containing 4 dual axis shutters with a 120-degree field of rotation, motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping. Two rotating glass gobo wheels featuring gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

Features:
Fully featured, compact and lightweight 580 W LED yoke profile fixture including CMY + CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, 8:1 zoom, a 5 facet prism wheel, and two rotating gobo wheels.
16-bit dimming of master dimmer for smooth control of fades.
Variable CMY + CTO color mixing system to create a wide pallet of colors.
CRI and CTB filters on color wheel for added flexibility.
Two rotating, indexing and interchangeable slot and lock gobo wheels.
DMX , WDMX, sACN, and Art-Net for full flexibility of control options.
RDM control over DMX for fixture reporting.
6.8° to 55.9° zoom range for variable beam sizes.
Iris, 5-facet prism and frost for beam control.
True 1 compatible power input.
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup.
USB slot for software uploads.
Battery backup display with auto-rotate depending on fixture orientation.

Specifications:
OPTICAL
Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7055 K, 50,000 hours life expectancy
Color Temperature (at full): 7055 K
CRI: 70.8
CRI with CRI Filter: 89.3
Front Lens Diameter: 127 mm
Beam Angle: 6.8° to 48.1°
Field Angle: 7.6° to 54.9°
Cutoff Angle: 8.4° to 55.9°
Zoom Range: 6.8° to 55.9°
Lumens – Source: 39,000
Lumens – Output: 20,856
Illuminance (7°) 51,865 lux @ 5 m
Illuminance (55.9°) 1,648 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag
Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (rotating): 22.5 mm (outside), 18.5 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 blades, each with dual axis movement.
Framing Shutter rotation: 120° total rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

CONSTRUCTION / PHYSICAL
Dimensions: 15.51 x 10.71 x 26.38 in (394 x 272 x 670 mm)
Dimensions (shipping size): 30.12 x 13.58 x 19.1 in (765 x 345 x 485 mm)
Weight: 57.3 lb (26 kg)
Weight (shipping weight): 61.73 lb (28 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

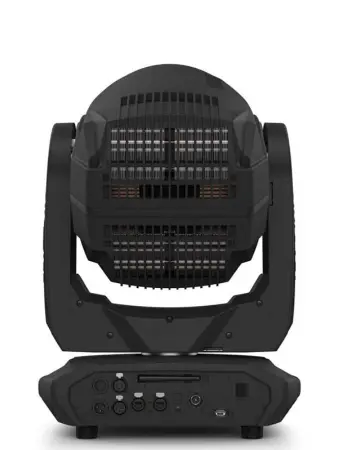

CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 33 or 50
Art-Net Channels: 33 or 50
Modes/Personalities: 2 personalities (33, 50)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 800 W, 8.01 A @ 100 V, 60 Hz
Power and Current: 780 W, 6.41 A @ 120 V, 60 Hz
Power and Current: 764 W, 3.68 A @ 208 V, 60 Hz
Power and Current: 754 W, 3.31 A @ 230 V, 50 Hz
Power and Current: 762 W, 3.19 A @ 240 V, 50 Hz
Power and Current (resting): 102 W, 1.02 A @ 100 V, 60 Hz
Power and Current (resting): 101 W, 0.801 A @ 120 V, 60 Hz
Power and Current (resting): 111 W, 0.532 A @ 208 V, 60 Hz
Power and Current (resting): 123 W, 0.485 A @ 230 V, 50 Hz
Power and Current (resting): 125 W, 0.467 A @ 240 V, 50 Hz
Fuse Size: F13 A, 250 V

CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 37 dB level @ 1 m
Noise Level (static - Full): 47.3 dB level @ 1 m
Noise Level (static - ECO): 40.7 dB level @ 1 m
Noise Level (Static - Auto): 40.9 dB level @ 1 m
Noise Level (Static - Max): 51.7 dB level @ 1 m
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED
Maverick Force 2 Profile
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware
Warranty Card
Quick Reference Guide or User Manual

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic Powerkon Extensions
DMX cables
Ethercon Extension cables
Flight Case
UPLOAD 08 software uploader

Chauvet Professional MaverickForce2Profile
