Chauvet Pro Maverick Force S Profile

$4,998.00 new
Warranty
Reviews: 0 Description Financing Q&A: 0
or $454/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time Low Price Guarantee



or $ 454/mo $0 Shipping, $0 Tax


Product Description

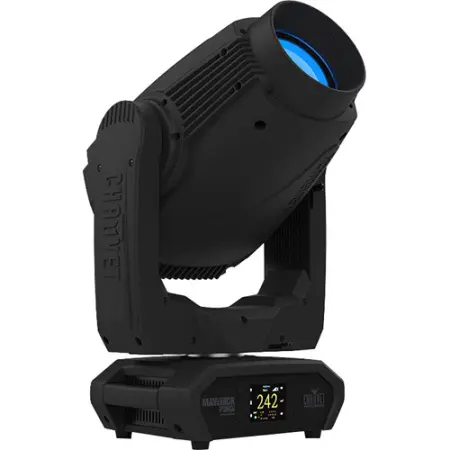

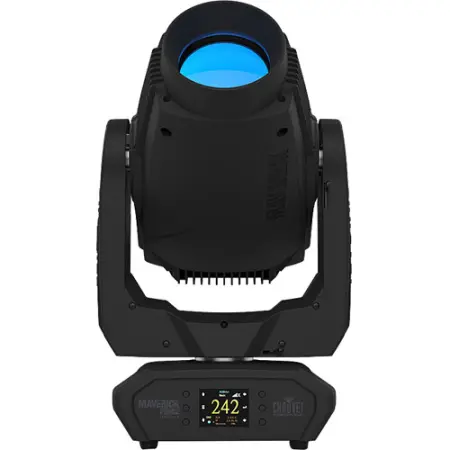

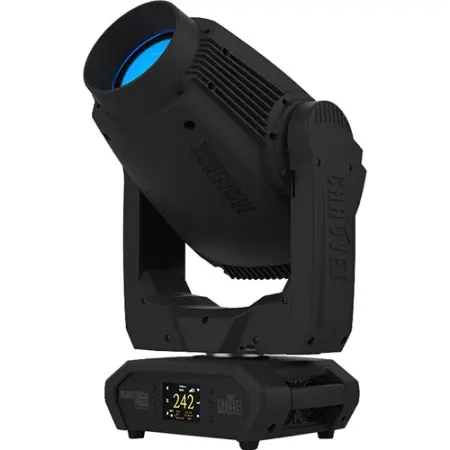

The CHAUVET PROFESSIONAL Maverick Force S Profile is a compact, road-ready moving-head LED light fixture ideal for installs and mobile DJ rigs in small-to-medium-sized clubs, theaters, houses of worship, touring stages, and event spaces.

The Maverick Force S Profile is powered by a bright, 350W, cool-white LED with a maximum illuminance of 51,865 lux at 16.4' and motorized zoom angles ranging from 4.5 to 41.6°. It features a four-blade framing shutter system with rotation, an 8-slot color wheel, two rotating gobos, as well as motorized focus, 5-facet motorized/rotating prism, motorized frost, and motorized iris effects.

With variable strobe, a pan range up to 540° and tilt range up to 270° (with inversion modes for both), fast and accurate head movements, movement macros, move-in-black functionality, and more, this fixture is capable of producing a myriad of dynamic colors and effects to quickly energize your dancefloor or live stage productions.

The unit provides CMY (cyan, magenta, yellow) and CTB color mixing with a color temperature of 6937K, a CRI of 89.6 (with CRI filter), and 16-bit electronic dimming to create a palette of vibrant colors with smooth fades. The color wheel comes with seven colors plus white and split and is capable of continuous scroll at variable-speed. The two gobo wheels feature seven interchangeable rotating gobos plus open on wheel 1 and nine fixed gobos plus open on wheel 2. Each wheel offers continuous variable-speed scrolling.

The Maverick Force S Profile can be controlled via DMX, W-DMX, sACN, and Art-Net protocols. It also converts TCP/IP to DMX for shorter data cable runs and offers RDM control over DMX for remote addressing and troubleshooting. The touchscreen LCD display and six buttons let you easily navigate the menu structure by either pressing the buttons or touching the display directly.

With its small frame standing just over 2' tall, the lightweight fixture can be safely mounted to a truss or lighting stand using the two included Omega hanging brackets, which also allow for quick removal when needed.

The universal, autosensing power supply and pass-through powerCON I/O allow you to connect a single power cable to the wall and daisy-chain up to 2 units at 120V or up to 5 units at 240V. The Maverick Force S Profile ships with a Seetronic Powerkon IP65 power cord.

Features:
Compact moving-head fixture with intense 350W cool-white LED light engine (51,865 lux at 16.4')
Designed to perform a wide variety of functions in theatrical, house of worship, touring, and event applications
Four-blade framing shutter system with 120° rotation, full wipe, and dual-axis movement for each shutter to shape and size beams with great precision
4.5 to 41.6° motorized zoom for variable beam sizes
Motorized focus, five-facet rotating prism, iris, and variable frost offer creative beam control
Variable CMY+CTB color mixing system to create a wide palette of colors
Color temperature (full): 6937K
CRI: 69 / CRI with CRI filter: 89.6
Seven-position + white color wheel with split-color and continuous scroll at variable speed
Gobo wheel 1: 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo wheel 2: 9 + open (metal), continuous scroll at variable speeds16-bit LED dimming with four curves for smooth fade control
Front lens diameter: 119 mm
Beam angle: 4.5 to 35.9°
Up to 540° pan and 270° tilt
Variable strobe: 0 to 20 Hz
Move in black
Movement macros
DMX Channels: 31 or 47
Modes/Personalities: 31 or 47
Compatible with DMX, W-DMX, sACN, and Art-Net protocols for flexible control options
RDM-enabled for remote addressing and troubleshooting
Display with battery backup auto-rotates depending on fixture orientation
Selectable PWM settings to maintain flicker-free operation on camera
3- and 5-pin DMX I/O connectors
Amphenol XLR Net RJ45 Art-Net/sACN I/O connectors
Seetronic Powerkon IP65 compatible with powerCon True 1 power input
Multivoltage operation: 100-240 VAC, auto-ranging
Housing Material: High-impact flame-retardant polymer
Includes two Omega brackets with mounting hardware

Specifications:
Light
Lighting Type Moving Head
Light Source 1 x White LED - 350 W / 2.7 A
Light Source Life Expectancy 50,000 Hours
Colors Cyan
Magenta
Yellow
Photometrics 7°:
4818.3 fc / 51,865 Lux at 16.4' / 5 m
56°:
153.1 fc / 1648 Lux at 16.4' / 5 m
Color Temperature 6937K
Lumen Output 14,669 Lumens
Beam Angle 4.5 to 35.9°
Field Angle 45.2 to 40.5°
Shutter / Strobe Electronic
Iris Yes, Mechanical
Focus Motorized
Zoom Adjustment Motorized, 4 to 41°
Dimming 16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Prism 5-Facet Circular (Rotating)
Performance
Operating Modes Color Dimmer, DMX, Display Inversion
Macros / Programs Chase Macro
Movement Macro
Effects Color Scroll
Color Split
Color Strobe
Gobo Scroll
Gobo Shake
Move-in-Black
Strobe Rate 0 to 20 Hz
Gobos 7 x Removable Glass Gobo
9 x Fixed Metal Gobo
Gobo Size Glass Gobo:
Outer Diameter: 1" / 25.5 mm
Max Image Size: 0.67" / 17.02 mm
PWM Frequency 600 Hz to 15,000 Hz (Adjustable)
Movement
Tilt Ranges 270° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Pan/Tilt Inversion Yes
Movement Resolution 16-Bit
Control
Control Protocols DMX512, W-DMX, RDM, Art-Net, sACN
DMX Channel Modes 2 Mode(s):
31 / 47-Channel
Remote Control Yes
Connectivity
I/O 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
2 x RJ45 DMX/Network Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON
Output: 1 x powerCON
Cord Length: 5' / 1.5 m
Fuse F 10 A 250 V
Power / Current Consumption 100 VAC, 60 Hz: 580 W
120 VAC, 60 Hz: 563 W
208 VAC, 60 Hz: 547 W
230 VAC, 50 Hz: 546 W
240 VAC, 50 Hz: 543 W
Power Linking 2 Units at 100 VAC
2 Units at 120 VAC
5 Units at 208 VAC
4 Units at 230 VAC
5 Units at 240 VAC
Environmental
IP Rating IP20
Operating Temperature -22 to 113°F / -30 to 45°C
Physical
Mounting Omega Bracket
Exterior Color Black
Cooling Convection, Fan
Certifications CE, FCC, MET, as per Manufacturer
Dimensions 25.2 x 14.2 x 9.4" / 63.9 x 36.1 x 23.8 cm
Weight 52.9 lb / 24 kg
