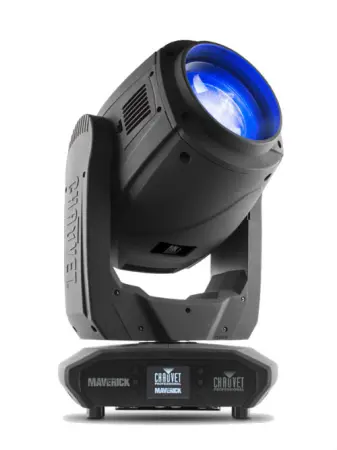

Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3º – 18º zoom range in spot mode and 19º – 41º in wash mode, and a robust CMY color system. Powered by a 440 W Osram Sirius reflector lamp, this supercharged hybrid awaits your command to dazzle with stunning output and effects. Choose from DMX, sACN, Art-Net, or W-DMX for control.

Features:

Fully featured, high powered Spot/Beam combination fixture with CMY color mixing and overlapping prisms
Fast and precise movement of Pan and Tilt functions
Variable CMY color mixing and static colors to create a wide range of color options
Individually controllable and overlappable 8 and 4-facet prisms
Frost and beam flattening options for even light distribution
Zoom angle of 3° to 18° in spot mode and 19° to 41° in wash mode for multiple coverage options
Tight 1° beam for extremely focused areal effects
6 rotating and 18 static gobos for massive visual impact
DMX , W-DMX, sACN, and Art-Net for full flexibility of control options
True 1 compatible power input
Battery backup display with auto rotate depending on fixture orientation.

Specifications:

OPTICAL
Light Source: Osram Sirius HRI 440W lamp, 6207 K (Color Temp), 1,500 hours life expectancy
Color Temperature (at full): 6207 K
Beam Angle: 1° to 6° (Spot mode) Field
Field Angle: 3° to 18° (Spot mode)
Zoom Angle (Spot mode): 3° to 18°
Illuminance (1°): 148,000 lux @ 15 m
Illuminance (3°): 85,000 lux @ 15 m
Illuminance (18°): 25,332 lux @ 5 m

DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 15 + white, split colors
Colors: CMY flags, CTO
Gobos (1): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 18 + open (18 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 22 mm (outside), 13 mm (image), 1.1 mm (max. thickness)
Effect Wheel: 1 effect
Framing Shutters: No
Dimmer: Motorized
Shutter/Strobe: Motorized
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Prism (1): 4 Facets, motorized, rotating
Prism (2): 8 Facets, motorized, rotating
Move-in-Black: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 15.51 x 12.09 x 24.76 in
Weight: 66.7 lb
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Neutrik
Cable Length (power): 5 ft

CONTROL
Control Protocol: Art-Net, sACN, DMX, W-DMX
DMX Channels: 26 or 29
Art-Net Channels: 26 or 29
Modes/Personalities: 2 personalities (26, 29)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 670 W, 5.45 A @ 120 V, 60 Hz
Power and Current: 648 W, 3.12 A @ 208 V, 60 Hz
Power and Current: 651 W, 2.81 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4°F to 113°F

WHAT'S INCLUDED
Maverick MK1 Hybrid
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware

Chauvet Professional Maverick MK1-Hybrid (Chauvet Pro Maverickmk1hybrid)
