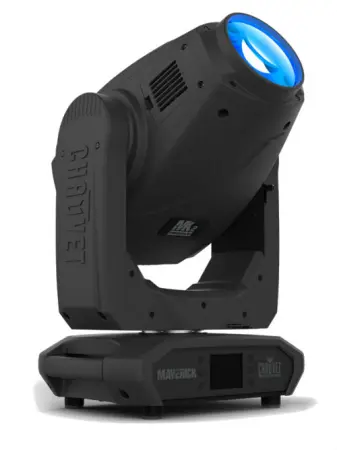

Maverick MK2 Profile delivers ultimate artistic precision via its advanced 4-blade dual position rotating framing system, a stunningly bright 440W LED engine, two 6-position rotating slot and lock gobo wheels, CMY+CTO color mixing, a 7-position + white color wheel, variable frost, 3-facet prism, and a 14° to 36° zoom range. Take control with DMX, sACN, Art-Net, or W-DMX, and test with RDM. As an added feature, this outstanding moving head can receive TCP/IP in, and send out DMX simplifying cable runs.

Features:

Fully featured 440 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, 3:1 zoom, and two rotating gobo wheels
16-bit dimming of master dimmer for smooth control of fades
Variable CMY+CTO color mixing system to create a wide pallet of colors
Two rotating, indexing and interchangeable slot and lock gobo wheels
DMX , WDMX, sACN, and Art-Net for full flexibility of control options
Converts TCP/IP to DMX for shorter data cable runs
RDM control over DMX for fixture reporting
14° to 36° zoom angle for variable beam sizes
Iris, 3-facet prism, and frost for beam control
True 1 compatible power input
Battery backup display with auto rotate depending on fixture orientation

Specifications:

Optical
Light Source: 1 LEDs (CW) 469.1 W, (6.5), 6,016 K, 50,000
hours life expectancy
Color Temperature (at full): 5883 K
CRI: 90
Beam Angle: 12° to 35°
Field Angle: 13° to 37°
Zoom Angle: 13° to 37°
Illuminance (13°): 14,981 lux @ 5 m
Illuminance (36°): 2.098 lux @ 5 m
Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz,
6,000Hz, 15,000Hz

Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 + white, split colors, continuous scroll at variable
speeds
Colors: CMY flags, CTO flag
Gobos (1): 6 + open glass, rotating, interchangeable,
indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 6 + open glass, rotating, interchangeable,
indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 32 mm (outside), 28
mm (image), 1.1 mm (max. thickness)
Gobo Size: Gobo Wheel 1 (rotating): 32 mm (outside), 26
mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 blades, each with dual axis movement
Framing Shutter rotation: 90°
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical
Dimensions:15.5 x 10.9 x 26.4 in (394 x 279 x 671 mm)
Weight: 69.8 lb (31.7 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45
Connectors in/out
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: Art-Net, DMX, W-DMX, sACN
DMX Channels: 33 or 50
Art-Net Channels: 33 or 50
Modes/Personalities: 2 personalities (33, 50)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 750 W, 6.32 A @ 120 V, 60 Hz
Power and Current: 732 W, 3.5 A @ 208 V, 60 Hz
Power and Current: 734 W, 3.1 A @ 230 V, 50 Hz
Breaker Size: F12 A, 250 V

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
Maverick MK2 Profile
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware

Chauvet Professional MaverickMK2Profile (Chauvet Pro Maverick mk2 profile)
