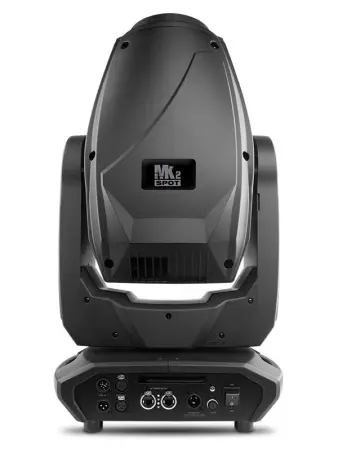

Stunningly bright with precision engineered optics, and a color mixing system that will leave you breathless, the Maverick MK2 Spot sets new standards in moving head LED spots. Powered by an industry leading 440W LED engine, this fixture boasts a CMY+CTO color mixing system, two 6 position rotating slot and lock gobo wheels, a 7 position + white color wheel, variable frost and 3 facet prism. All of this projected through a 13° to 37° zoom system. With the ability to control the Maverick MK2 Spot over DMX, Art-Net, sACN, or by WDMX, there is an option for every situation. As an added feature, this fixture can receive Art-Net in, and send out DMX simplifying cable runs.

Features:

Fully featured 440W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, zoom optics, and two rotating gobo wheels
16-bit Dimming of master dimmer for smooth control of fades
Variable CMY+CTO color mixing system to create a wide pallet of colors
Two rotating, indexing and interchangeable slot and lock gobos
DMX , WDMX, sACN, and Art-Net for full flexibility of control options
Converts TCP/IP Protocol to DMX for shorter data cable runs
13° to 37° Zoom angle for variable beam sizes
Iris, 3-facet prism, and frost for beam control
True 1 compatible power input

Specifications:

OPTICAL
Light Source: 1 LED (CW) 440 W, (5.6 A), 6808 K, 50,000 hours life expectancy
Color Temperature (at full): 6808 KCRI: 73
Beam Angle: 12° to 35°
Field Angle: 13° to 37°
Zoom Angle: 13° to 37°
Illuminance (13°): 18,079 lux @ 5 m
Illuminance (37°): 2,518 lux @ 5 m

DYNAMIC EFFECTS
Pan and Tilt: 540°/540°
Pan and Tilt Ranges: 540°, 360°, 180° pan/540°, 270°, 180° tilt
Colors: 7 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag
Gobos (1): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size (1) : Gobo Wheel 1 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)
Gobo Size (2) : Gobo Wheel 2 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: MotorizedFocus: Motorized
Frost: MotorizedIris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

CONSTRUCTION / PHYSICAL
Dimensions: 15.1 x 9.8 x 26.4 in (385 x 250 x 671 mm)
Weight: 62.8 lb (28.5 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Neutrik
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: Art-Net, sACN, DMX, W-DMX
DMX Channels: 24 or 30
Art-Net Channels: 24 or 30
Modes/Personalities: 2 personalities (24, 30)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 740 W, 6.01 A @ 120 V, 60 Hz
Power and Current: 723 W, 3.63 A @ 208 V, 60 Hz
Power and Current: 700 W, 3.33 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location

Chauvet Professional Maverick mk2 spot (Chauvet Pro maverick spot mk2)
