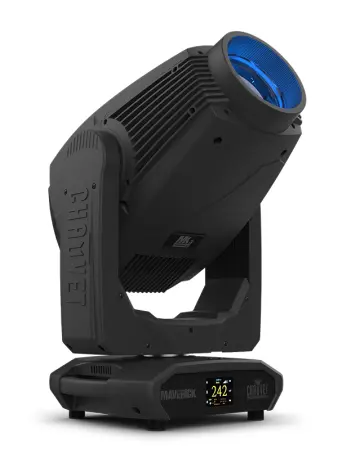

Maverick MK3 Profile features a searing output of over 51,000 source lumens and an advanced, 4-blade shutter frame system with the ability to fully blackout and a 120° rotation. Its precision LED optics feature CMY + CTO color mixing and a fast 9:1 zoom ratio that maintains a flat field of focus even when fully wide. It also has an adjustable CRI from 73 to 93 CRI for use as a key light for broadcasted events. Maverick MK3 Profile offers great static, rotating, and animation effects from its 2 gobo wheels (1 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and 2 frost options: superlight and medium. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

AT A GLANCE
Fully featured 820 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 9:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
Independently layerable 5 facet linear and 5 facet round prisms for increased prism options
One rotating and one static gobo wheel for dynamic texture possibilities
Independent light and medium frosts for beam control
+ or – 60 degree rotation framing shutter system to allow for better framing positioning.
Animation wheel for enhanced visual effects
Iris for total beam control
RDM control over DMX for fixture reporting
6° to 54° zoom angle for variable beam sizes
3 menu presets and preset cross load for decreased shop setup time
True 1 compatible power input
Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (CW) 820 W, (24 A), 7,450 K, 50,000 hours life expectancy
Color Temperature (at full): 7,441 KCRI: 73CRI W / Filter: 91.2TLCI: 50.9
Beam Angle: 6° to 44°
Field Angle: 6° to 54°
Zoom Angle: 6° to 54°
Lumens – Source: 51,000
Lumens – Output: 23,000
Illuminance (6°): 58,800 lux @ 5 m
Illuminance (54°): 1,770 lux @ 5 m
Illuminance W / CRI Filter (6°): 40,100 lux @ 5 m
Illuminance W / CRI Filter (54°): 1,190 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, CRI filter, color correctionGobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (9 glass), continuous scroll at variable speeds
Effect Wheel: 1 effect
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost 1: Light Frost - Motorized
Frost 2: Medium Frost - Motorized
Iris: Motorized
Prism: 5 linear facets, motorized, rotating
Prism: 5 Circular facets, motorized, rotating
Strobe Rate: 0 to 25 Hz
Move-in-Black: Yes
Dim Curves: 4

CONSTRUCTION / PHYSICAL
Dimensions: 16.10 x 12.20 x 29.43 in (409 x 310 x 748 mm)
Weight: 76.4 lb (34.7 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONTROL
Control Protocol: Art-Net, DMX, W-DMX, sACN
DMX Channels: 38 or 54
Art-Net Channels: 38 or 54
Modes/Personalities: 2 personalities (38, 54)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 1,070 W, 9.04 A @ 120 V, 60 Hz
Power and Current: 1,050 W, 5.13 A @ 208 V, 60 Hz
Power and Current: 1,050 W, 4.56 A @ 230 V, 50 Hz
Power and Current (resting): 112W, .93 A @ 120 V, 60 Hz
Power and Current (resting): 122 W, .53 A @ 208 V, 60 Hz
Power and Current (resting): 124 W, .53 A @ 230 V, 50 Hz
Breaker Size: F20 A, 250 V

CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 36.5 dB level @ 1 m
Noise Level (Full): 62.1 dB level @ 1 m
Noise Level (Eco): 43 dB level @ 1 m
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Maverick MK3 Profile
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon ExtensionsD
MX cables
Flight Case: TBAMRUPLOAD software uploader
