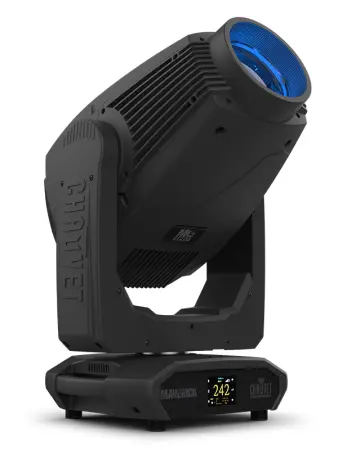

Maverick MK3 Spot features a searing output of over 51,000 source lumens and a fully-loaded artillery of awesome effects. Its precision LED optics feature CMY + CTO color mixing and a fast 9:1 zoom ratio that maintains a flat field of focus even when fully wide. The powerful unit also has an adjustable CRI from 73 to 93 CRI. Maverick MK3 Spot provides impressive static, rotating, and animation effects from its 3 gobo wheels (2 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and 2 frost options: superlight and medium. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

AT A GLANCE
Fully featured 820W LED yoke spot fixture including CMY+CTO Color Mixing, a color wheel, a CRI filter, animation wheel, a 9:1 zoom, two independently layerable prisms, two frosts, a static and 2 rotating gobo wheels
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide palette of colors
Independently layerable 5 facet linear and 5 facet round prisms for increased prism options
Two rotating and one static gobo wheel for maximum dynamic texture possibilities
Independent light and medium frosts for beam control
Animation wheel for enhanced visual effects
Iris for total beam control
RDM control over DMX for fixture reporting
6° to 54° zoom angle for variable beam sizes
3 menu presets and preset cross load for decreased shop setup time
True 1 compatible power input
Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (CW) 820 W, (24 A), 7,472 K, 50,000 hours life expectancy
Color Temperature (at full): 7,472 KCRI: 75CRI W / Filter: 94
Beam Angle: 6° to 45°
Field Angle: 6° to 55°
Zoom Angle: 6° to 55°
Lumens – Source: 51,000
Lumens – Output: 22,000
Illuminance (6°): 58,200 lux @ 5 m
Illuminance (55°): 1,870 lux @ 5 m
Illuminance W / CRI Filter (6°): 36,400 lux @ 5 m
Illuminance W / CRI Filter (55°): 1,320 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, CRI filter, color correction
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (3): 8 + open (8 metal), 2 rotating, 1 static gobo wheel.
Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm (image), 1.1 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (rotating): 30 mm (outside), 21 mm (image), 1.1 mm (max. thickness)
Gobo Size: Gobo Wheel 3 (static): 160 mm (outside), 22 mm (image), 0.8 mm (max. thickness)
Effect Wheel: 1 effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost 1: Light Frost - Motorized
Frost 2: Medium Frost - Motorized
Iris: Motorized
Prism: 5 Linear facets, motorized, rotating
Prism: 5 Circular facets, motorized, rotating
Strobe Rate: 0 to 25 Hz
Move-in-Black: Yes
Dim Modes: 4

CONSTRUCTION / PHYSICAL
Dimensions: 16.10 x 11.92 x 29.76 in (409 x 303 x 756 mm)
Weight: 72.9 lb (33 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer, Steel

CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: Art-Net, DMX, W-DMX, RDM, sACN
DMX Channels: 31 or 39A
rt-Net Channels: 31 or 39
Modes/Personalities: 2 personalities (31, 39)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging
)Power and Current: 1120 W, 9.35 A @ 120 V, 60 Hz
Power and Current: 1110 W, 5.28 A @ 208 V, 60 Hz
Power and Current: 1100 W, 4.80 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Maverick MK3 Spot
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
DMX cables
Ethercon extension cables
Flight Case: CP2CASEMK
MRUPLOAD software uploader

Chauvet Maverick Spot (Chauvet Pro MK3 Spot)
