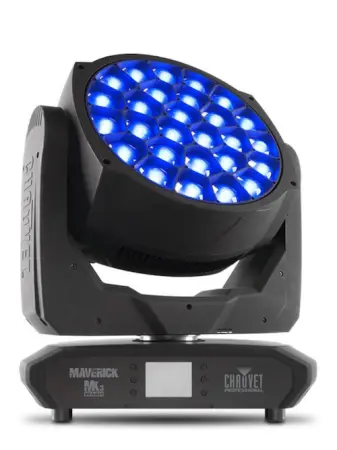

Maverick MK3 Wash raises the bar on output, color consistency, and pixel effects. Powered by 27 (40 W) Osram RGBW LEDs, it has the muscle to handle any application, including long throw situations with ease. Pixel mapping effects, built in color macros and gobos, along with a CTO color mixing option make this powerhouse fixture the complete wash package. Control options include DMX, sACN, Art-Net, Kling-Net or W-DMX.

Features:

Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
Built in colors for quick design possibilities
Built in virtual gobo wheel with background colors for impressive atmospheric effects
Precise movement of pan, tilt, and zoom
Quiet operation for a wide range of installation situations
DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
RDM Enabled for remote addressing and trouble shooting
7° - 45° Zoom angle for variable beam sizes
True 1 compatible power input
Battery backup touchscreen display with auto rotate depending on fixture orientation

Specifications:

Optical
Light Source: 27 LEDs (quad-color RGBW) 40 W, (2.6A),
50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 5° to 29°
Field Angle: 7° to 45°
Zoom Angle: 7° to 45°
Illuminance (7°): 89,200 lux @ 5 m
Illuminance (45°): 2814 lux @ 5 m
Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz,
15000Hz

Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical
Dimensions: 18.7 x 11.49 x 22.93in 459 x 292 x583 mm)
Weight: 68.2 lb (31 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: Art-Net, Kling-Net, sACN, DMX, W-DMX
DMX Channels Single Mode: 20, 129, 243 or 297
DMX Channels Dual Mode – Function: 9,21,27
DMX Channels Dual Mode – Pixel: 81,108,216
Art-Net Channels Single Mode: 21, 129, 243 or 297
Art-Net Channels Dual Mode – Function: 9,21,27
Art-Net Channels Dual Mode – Pixel: 81,108,216

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 1,120 W, 9.51 A @ 120 V, 60 Hz
Power and Current: 1,090 W, 5.35 A @ 208 V, 60 Hz
Power and Current: 1,100 W, 4.84 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware

Optional Accessories
Professional Clamp: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables

Chauvet Maverick wash mk3 (Chauvet Pro MaverickMK3wash)
