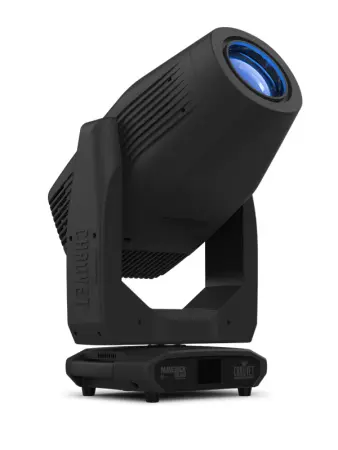

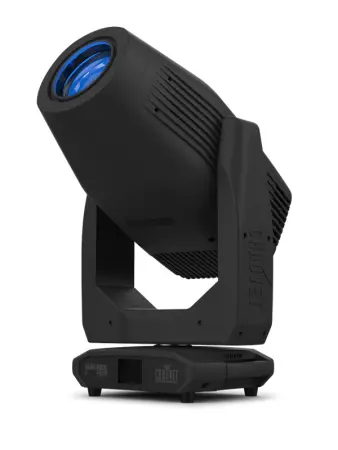

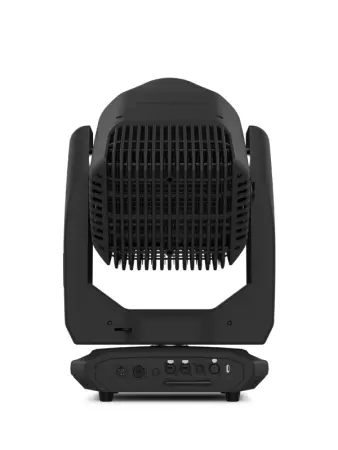

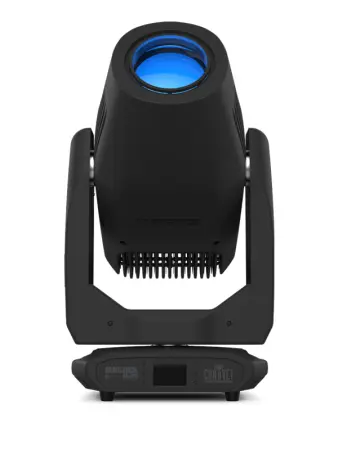

Maverick Silens 2 Profile is the quietest LED moving head ever released for theatre and studio applications. This innovative 560W moving head is completely fanless and designed to operate in total silence without compromises in color-consistency and output. The unit features a 10,000+ lumen output, customized optics with variable CMY + CTO color mixing for superior, luscious colors and a +/- green adjustment to ensure perfectly rendered skin tones. Maverick Silens is also capable of superb animation effects via 1 rotating, 1 static gobo wheel, 1 prism, fully variable frost and an emulated red shift for a tungsten punch. Control your way with DMX, sACN, Art-Net, or CRMX.

Features:
Completely silent, fully featured 560 W 95+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
100% convection cooled for zero fan noise along with silent motion and effects
16-bit dimming with selectable red shift of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
One rotating and one static gobo wheel with unique, theatrical based designs
Interchangeable gobos between rotating and static wheels
Variable frost system
+ or – 60 degrees rotation framing shutter system to allow for better framing positioning.
Animation wheel for enhanced visual effects
Iris for total beam control
RDM control over DMX for fixture reporting
5° to 58° zoom range for variable beam sizes
True 1 compatible power input and throughput
Battery backup display with auto-rotate depending on fixture orientation

Specifications:
OPTICAL
Light Source: 1 LEDs (CW) 500 W, (15.5 A), 6000 K, 30,000 hours life expectancy
Light Source: 1 LED (RGB) 60 W, (3.2 A), 50,000 hours life expectancy
Color Temperature (at full): 6000 K
CRI: 95.6
Beam Angle: 5° to 50°
Field Angle: 6° to 54°
Zoom Range: 5° to 58°
Cutoff Angle: : 7° to 58°
Lumens – Source: 20,672
Lumens – Output: 10,549
Illuminance (6.4°): 29,598 lux @ 5 m
Illuminance (53.7°): 640 lux @ 5 m
Selectable PWM: 20,000, 40,000

DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, color correction
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm (image)
Effect Wheel: 1 effect
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Variable Frost - Motorized
Iris: Motorized – 15 Leaf
Prism: 5 Facets, round, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

CONSTRUCTION / PHYSICAL
Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
Weight: 75.5 lb (34.4 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant Polymer

CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
DMX Channels: 32 or 41
Art-Net Channels: 32 or 41
Modes/Personalities: 2 personalities (32, 41)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
Power and Current: 650 W, 6.53 A @ 100 V, 60 Hz
Power and Current: 640 W, 5.45 A @ 120 V, 60 Hz
Power and Current: 639 W, 3.10 A @ 208 V, 60 Hz
Power and Current: 648 W, 2.82 A @ 230 V, 50 Hz
Power and Current: 654 W, 2.75 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Maverick Silens 2 Profile
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Gel Frame Holder and Gel Frame

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
DMX cables
Ethernet cables
