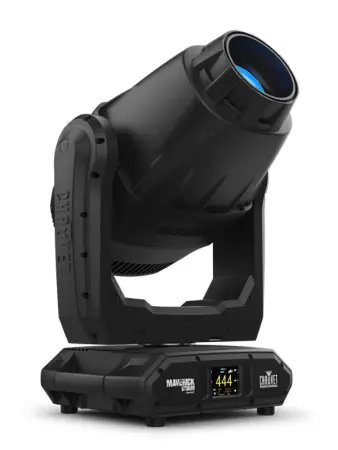

Maverick Storm 1 Spot is a powerful, IP65-rated Cool White LED moving head that compliments the Maverick Storm 1 Wash perfectly. The outdoor-ready unit features a compact and rugged die-cast aluminum housing built with marine grade stainless steel screws to withstand even the harshest elements. With an output of just over 14,500 lumens, its customized optics feature variable CMY + CTO color mixing and a massive zoom range. A rotating and static gobo wheel, 5-facet motorized and rotating prism, animation wheel, light and medium frosts, and iris create killer visual effects. The RDM-enabled unit features 16-bit dimming and can be controlled via DMX, W-DMX, sACN, and Art-Net.
AT A GLANCE
Fully featured IP 65 Rated 480W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, animation wheel, 6.5:1 zoom, a 5 facet prism, two frosts, a static and rotating gobo wheel, and a patent-pending sunshield optical protection system
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
5 facet prism
Independent light and medium frosts for beam control
Animation wheel for enhanced visual effects
Iris for total beam control
RDM control over DMX for fixture reporting
7° to 45° zoom angle for variable beam sizes
3 menu presets and preset cross load for decreased shop setup time
True 1 compatible power input
Battery backup display with auto-rotate depending on fixture orientation
Intergraded and controllable sunshield for protecting optical system when fixture is not in use
SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (CW) 480 W, 6604 K, 50,000 hours life expectancy
Color Temperature (at full): 6604
KCRI: 69
TLCI: 46.8
Beam Angle: 7° to 39°
Field Angle: 7° to 45°
Zoom Angle: 7° to 45°
Lumens – Source: 32,000
Lumens – Output: 14,500
Illuminance (7°): 34,300 lux @ 5 mI
lluminance (45°): 1850 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 + white, split colors, continuous scroll at variable speedsColors: CMY flags, CTO flagGobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speedsGobos (2): 8 + open (8 metal), rotating, continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
Gobo Size (2): Gobo Wheel 2 (rotating): 160 mm (outside), 23 mm (image), 0.8 mm (max. thickness)
Effect Wheel: 1 effect
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost 1: Light Frost - Motorized
Frost 2: Medium Frost - Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
CONSTRUCTION / PHYSICAL
Dimensions: 17.91 x 12.56 x 28.43 in (455 x 319 x 722 mm)
Dimensions (shipping size): 32.87 x 16.33 x 22 in (83.5 x 41.5 x 56 mm)
Weight: 85.8 lb (38.9 kg)
Weight (shipping weight): 92.6 lb (42 kg)
Exterior Color: BlackHousing
Material: High-impact flame-retardant polymer
CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated, Neutrik IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, DMX, W-DMX, RDM, sACN
DMX Channels: 26 or 33
Art-Net Channels: 26 or 33
Modes/Personalities: 2 personalities (26, 33)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 VPower and Current: 640 W, 5.38 A @ 120 V, 60 Hz [11 A inrush]
Power and Current: 666 W, 3.17 A @ 208 V, 60 Hz [15 A inrush]
Power and Current: 660 W, 2.92 A @ 230 V, 50 Hz [14 A inrush]
Power and Current (resting): 112 W, 0.93 A @ 120 V, 60 Hz
Power and Current (resting): 125 W, 0.57 A @ 208 V, 60 Hz
Power and Current (resting): 120 W, 0.48 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP65Noise Level (ambient): 36.9 dB level @ 1 m
Noise Level (Full): 61.3 dB level @ 1 m
Noise Level (Eco): 55.5 dB level @ 1 m
Temperature (Ambient): 14 °F to 104 °F (-10 °C to 40 °C)
WHAT'S INCLUDED
Maverick Storm 1 Spot
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07DMX Cables
IP Rated Seetronic® Powerkon ExtensionsMR
UPLOAD software uploader
Micro T-1 TRX G5 WDMX Transceiver
