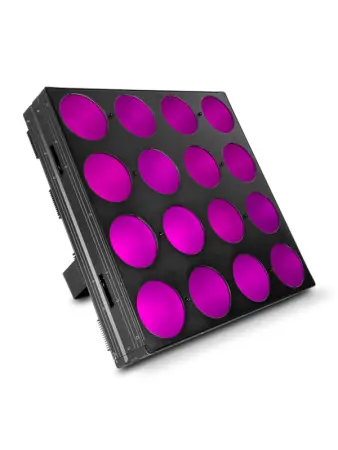

Nexus 4×4 is an award winning LED wash panel combining the sizzle of pixel mapping and a robust light output afforded by 16 27 W COB tri-colored LEDs. The combination of COB emitters and a clever reflector design yields a striking, diffused light richly drenched in saturated hues. Nexus 4×4 is controllable via Art-Net, Kling-Net and DMX protocols and features interlocking hardware to build large arrays. Whether in use for front viewing or as a backdrop, Nexus 4×4 promises a hard-to-match visual impact.

AT A GLANCE
Pixel-mapping RGB blinder allows you to achieve vibrant colors with bright COB LEDs
Increase pixel mapping options by controlling pixels individually
Build large arrays by linking multiple panels together with integrated locks
Works seamlessly with Nexus 2x2 and Nexus 4x1
Design with flexible control options: Kling-Net, Art-Net, or DMX
Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin XLR DMX

SPECIFICATIONS
OPTICAL
Light Source: 16 LEDs (tri-color RGB) 27 W, (2 A), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle: 45°
Field Angle: 75°
Illuminance (total): 484 lux @ 5 m
Pixels: 4 x 4
Pixel Pitch: 115 mm
Pixel Density: 64/m2

DYNAMIC EFFECTS
Dimmer: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions (single unit): 18.07 x 6.61 x 18.07 in (462 x 168 x 462 mm)
Dimensions (roadcase): 37.99 x 20.67 x 27.56 in (965 x 525 x 700 mm)
Weight (single unit): 28.6 lb (13 kg)
Weight (roadcase): 81.6 lb (37 kg)
Exterior Color: Black
Housing Material: Aluminum alloy and steel

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR, Neutrik etherCON
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: Art-Net, Kling-Net, DMX
DMX Channels: 3, 5, 9, 48 or 53
Art-Net Channels: 48

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current: 401 W, 3.35 A @ 120 V, 60 Hz
Power and Current: 393 W, 1.90 A @ 208 V, 50 Hz
Power and Current: 394 W, 1.71 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location

WHAT'S INCLUDED
Nexus 4x4
Neutrik powerCON power cord
#5 Allen wrench
Road case (4 Pack)

OPTIONAL ACCESSORIES
ArKaos Media Master Express + KN software
Clamps
Neutrik powerCON cables
Neutrik etherCON cables
DMX Cables
