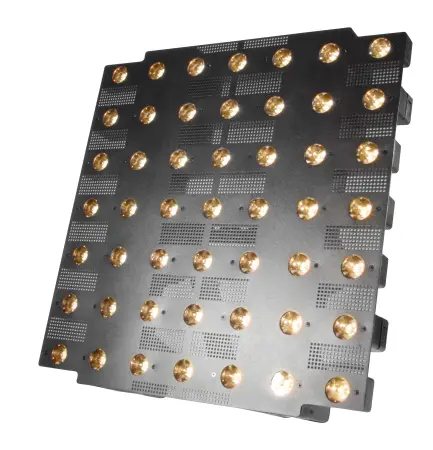

Chauvet Pro Nexus AW 7x7

Chauvet Professional Nexus AW 7x7

The Nexus™ Aw 7x7 LED panel wall system is a truly versatile LED system that projects narrow beams of light, provides warm washes, makes instant audience blinders, and displays impactful text and vivid animated graphics. Powerful Cree LEDs partnered with a flexible software system generate stunning pixel mapping effects. A smooth dimming curve with a 2800 K color temperature makes it perfect for live events, broadcast, studio, theatre, and touring applications.










Features:

• Stage blinder delivering great output due to 49 WW LEDs
• Project narrow beams of light
• Wash with a warm and rich 2800 K color temperature
• Create impactful text and vivid animated graphics
• Smooth dimming curve
• Built-in power supply for easy use
• Design with intuitive individual pixel-mapping options: Kling-Net, Art-Net™, DMX
• Flexible panel system with integrated locks and 0.5 x 0.5 m footprint optimal for larger arrays
• Use universal power connectors: Neutrik® powerCON®, Neutrik® etherCON®, 3- and 5-pin connections
• Built-in effects triggered by DMX

Specifications:

• Control Protocol: Art-Net™, Kling-Net, DMX
• DMX Channels: 5 or 49
• Art-Net™ Channels: 49
• Data Connectors: 3- and 5-pin XLR, Neutrik® etherCON®
• Light Source: 49 LEDs (warm white) 3 W, (700 mA), 50,000 hours life expectancy
• Built-in Automated Programs: Yes
• Pixels: 7 x 7
• Pixel Pitch: 71 mm
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 7°
• Field Angle: 12°
• Illuminance (total): 9,400 lux @ 5 m
• Color Temperature (full): 2800 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Edison plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 173 W, 1.44 A @ 120 V, 60 Hz
• Power and Current: 171 W, 0.82 A @ 208 V, 60 Hz
• Power and Current: 176 W, 0.75 A @ 230 V, 50 Hz
• Weight (single unit): 17.2 lb (7.8 kg)
• Dimensions (single unit): 19.7 x 19.7 x 3.5 in (500 x 500 x 90 mm)
• Housing Material: Aluminum alloy
• Compatible Mounting Options: Affinity™ Rig Kit (truss mounting), or M12 Bolt/Clamp (rear mounting/adjustable bracket)
• Accessories (optional): ArKaos Media Master Express™ + KN software
• Approvals: CE, MET
