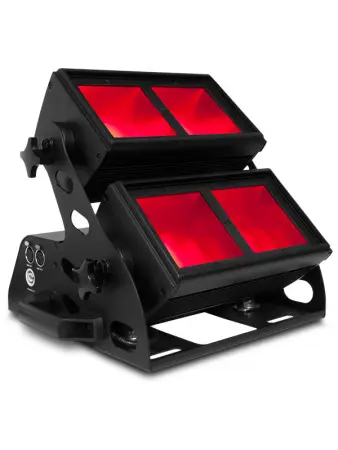

Ovation C-805FC uses its RGBA-Lime color palette to render nearly any color with tremendous realism and saturation. Its superb optics ensure an even output. Setup is easier than ever with the addition of RDM, adjustable PWM and an easy to navigate OLED full text display.

AT A GLANCE
Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
Theatre-ready with 16-bit dimming of master dimmer and individual colors
Better coverage with two individually adjustable heads, gives the ability to project split colors
Compact cyclorama wash lighting fixture
Flat, even field of light with superior color mixing
Virtual Color wheel with color matched to popular Rosco Gel colors
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Silent operation for use in studio and theatre applications

SPECIFICATIONS
OPTICAL
Light Source: 80 LEDs (20 red, 20 green, 20 blue, 12 amber, 8 lime) 2 to 4 W, (820 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
CRI (3200 K): 80
Beam Angle (Top Pod) (Horizontal): 41°
Beam Angle (Top Pod) (Vertical): 57°
Beam Angle (Bottom Pod) (Horizontal): 37°
Beam Angle (Bottom Pod) (Vertical): 54°
Beam Angle (Both Pods) (Horizontal): 40°
Beam Angle (Both Pods) (Vertical): 57°
Field Angle (Top Pod) (Horizontal): 64°
Field Angle (Top Pod) (Vertical): 80°
Field Angle (Bottom Pod) (Horizontal): 40
Field Angle (Bottom Pod) (Vertical): 78°
Field Angle (Both Pods) (Horizontal): 67°
Field Angle (Both Pods) (Vertical): 81°
Lumens (Top Pod): 3,287
Lumens (Bottom Pod): 2,850
Lumens (Both Pods) : 5,587
Illuminance (Top Pod): 175 lux @ 5 m
Illuminance (Bottom Pod): 169 lux @ 5 m
Illuminance (Both Pods): 310 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000Hz

DYNAMIC EFFECTS
Tilt: ± 30° manual adjustment per pod
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20Hz
Standalone Color Mixing: Yes
Color Temperature Presets: No
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 15.3 x 12.2 x 11.7 in (390 x 310 x 298 mm)
Weight: 22 lb (10 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 5.32 x 9.65 in (135 x 245 mm)

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX
DMX Channels: 3, 4, 5, 6, 7, 8, 12, 18 or 24
Modes/Personalities: 12 personalities (TOUR, TR16, ARC.1, AR1.D, ARC.2, ARC.3, ARC3.D, AR3.S, HSIC, PIXEL.1, PIXEL.3, PIXEL.16)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
Power and Current: 152 W, 1.229 A @ 120 V, 60 Hz
Power and Current: 147 W, 0.704 A @ 208 V, 60 Hz
Power and Current: 146 W, 0.638 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location

WHAT'S INCLUDED
OVATION C-805FC
Neutrik® powerCON® power cord
2 Gel Frames 5.32 x 9.65 in (135 x 245 mm)
2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
